Product Details:
|
| Product Name: | 2-5T/H SUS304 Mango Puree Making Machine Processing Line | Application: | Juicer Or Jam Production Line |
|---|---|---|---|
| Function: | Fruit Vegetable Processing | Brand: | YGT |
| Place Of Origin: | Shanghai,China | Voltage: | 380V 50HZ |
| Certification: | CE | Warranty: | 1Year |
| Materical: | SUS304 | Capacity: | 1-2T/h |
| High Light: | SUS304 Mango Pulp Processing Plant,5T/H Mango Pulp Processing Plant,SUS304 Mango Pulp Making Machine |
||

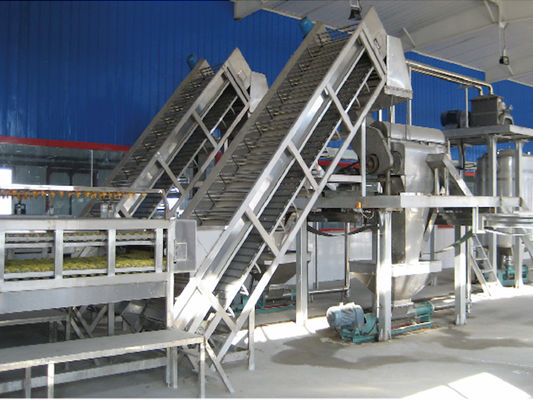

2-5T/H SUS304 Mango Puree Making Machine Processing Line
OVERVIEW
Mango is known as the king of tropical fruits. It is sweet, juicy and delicious, with high nutritional value. It contains a variety of vitamins, especially vitamin A. Nowadays, in order to allow people to eat mangoes in different seasons, fruit farmers will make mangoes in season into dried mangoes/mango juice/mango puree and other products. Most of them will produce mango puree, because it is easy to store and use, and mango puree can also be formulated into various mango beverages and condiments. Our company has rich experience in mango puree processing equipment.
TECHNICAL DATA SHEET
| Raw material | mango, tomato, guava |
| Final product | mango puree/jam, tomato paste, guava concentrate |
| Capacity | 3-25t/h |
| Juice yielding rate | 45-55%(mango), 90-95%(tomato) |
| Soluble solid content (fresh juice) | 14-16brix (mango ), 4-4.5brix(tomato ), >9brix(guava) |
| Soluble solid content (Final pulp) | 14/28brix (mango ), 28-30/36-38brix(tomato ), >20brix (guava ) |
| Consistency(Bostwick at 20℃) | 6-12/3.5-10(mango), 4-8(tomato),3.5-8(guava) |
| Final product package | Aseptic bag220/1400L//BIB 25L// Can tin 400g/800g |
PRODUCTION PROCESSING
Concentrated mango puree:
Fresh mango after washing, sorting, destoning and peeling,pulping filtering,evaporating,sterilizing then filled into 220kg aseptic bags in drums.The end products of concentrated mango juice technical parameter is Brix 28-30%or 30-32%,PH value is 3.0-4.0.
Non-concentrated mango puree:
Fresh mango after washing,sorting,destoning and peeling,pulping filtering,homogenizing,vacuum degassing,sterilizing then illed into 220kg aseptic bags in drums.The end products of non-concentrated mango puree technical parameter is that Brix value is 14- 22%,Total acidity: 0.3-1.1%,PH:3.2-4.0,Pulp content:≥40%.
Blended mango juice:
Concentrated mango puree/juice are as raw materials,after blending with water and sugar and other additives,homogenizing and degassing,sterilizing,the end mango juice are illed into PET/glass bottles,small tin cans,tetra pak.
NFC mango juice:
Fresh mango after washing,sorting,destoning and peeling,pulping fltering,decanter centrifuge,disk separating,homogenizing, degassing,sterilizing then illed into small bottles, the iller is usually for the asepticflling.
FLOW CHART
MAIN EQUIPMENTS
Washing Systerm
The bubble washing machine is installed with a water circulation pump and bubble generators. The materials are washed and pushed forward by rolling water. This machines perfectly imitates manual washing, which washes materials at least hurt level.
Homogenizer
The fruit suspension in the fruit puree homogenized by the homogenizer has a smaller particle size and a higher viscosity. Under the action of shearing and impact, the ketchup is thinner and tastes smoother.
The high pressure homogenizer is mainly composed of a high pressure pump and a homogeneous valve.The uniform pressure of the material is between 25-40mpa.
Tubular sterilization machine
After mixing the tomato sauce evenly, pump it into the sterilization machine for sterilization treatment, which can extend the shelf life of the product.The sterilization temperature was 55℃-105℃, sterilization time for 120 seconds.Material outlet temperature was set at 85℃, for hot filling.Due to the high viscosity of ketchup, we generally use a tube pasteurizer.
