Product Details:
|
| Name: | Aseptic Bag Filler | Application: | Cream Milk, Concentrated Juice, Fruit Paste |
|---|---|---|---|
| Capacity: | 1000-6000l/h | Structure: | Single Head/ Double Head |
| Steam Consumption: | 40-80kgs/h | Warranty: | 2 Years |
| Origin: | China | ||
| High Light: | 220l Aseptic Bag In Box Filler,6000l/h Aseptic Bag In Box Filler,Fruit Paste Aseptic Bag Filling Machine |
||

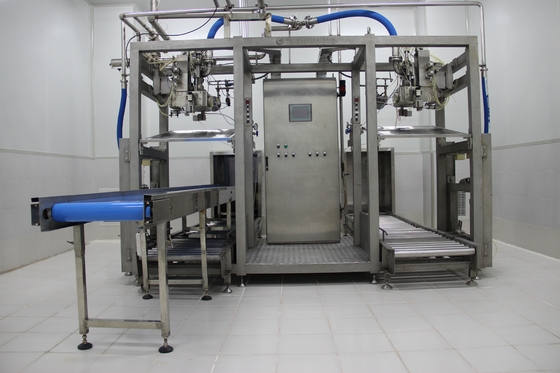

Aseptic bag-in-box Filler for tropical fruit paste concentrated juice
Application
An aseptic bag filler machine, also known as an aseptic bag filling machine or aseptic bag-in-box filler, is a piece of equipment used to fill aseptic bags with liquid products in a sterile environment. These machines are commonly used in the food and beverage industry to package and preserve products such as juices, concentrates, dairy products, sauces, and liquid foods.
Characteristics
Automatic aseptic filling machine is specially designed for large capacity filling. It occupies less areas, works stably and operates conveniently. Using Aseptic filling machine Food can be stored for more than one year at room temperature, which reduces the low temperature refrigerating transportation costs and risks.(concentrated juice and jam can be saved for more than 2 years at room temperature.)
Technical Data
| Name | aseptic bag in box filler |
| Filling head | single or double |
| Type | BIB filling |
| Flow control | flowmeter |
| PLC | by import electric components and touch screen HMI |
| Conveyor | roller conveyor |
| Filling range | 1L-30L,220L/1400L |
| Application | widely used in fruit juice, fruit pulp and jam for liquid food aseptic packaging. |
Catalogue Download
Aseptic filling machine catalog.pdf
