Dairy/Uht/Yoghurt/Pasteurized Milk Factory For Turn Key Project

China Dairy/Uht/Yoghurt/Pasteurized Milk Factory For Turn Key Project supplier
Dairy/Uht/Yoghurt/Pasteurized Milk Factory For Turn Key Project supplier Dairy/Uht/Yoghurt/Pasteurized Milk Factory For Turn Key Project supplier

Large Image :  Dairy/Uht/Yoghurt/Pasteurized Milk Factory For Turn Key Project

Product Details:

Place of Origin: CHINA
Brand Name: YGT
Certification: SGS,ISO
Model Number: YGT-PA

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: USD100000-150000/SET
Packaging Details: WOODEN BOX
Delivery Time: 50 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 5SETS/MONTH
Contact Now
Detailed Product Description
Name: Milk Pasteurized Material: SUS304
Application: Milk, Dairy, Yoghurt Capacity: 500-5000l/h

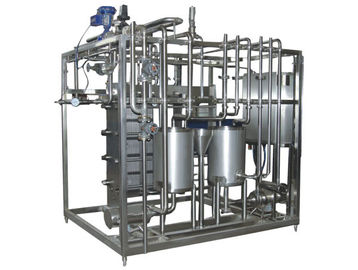

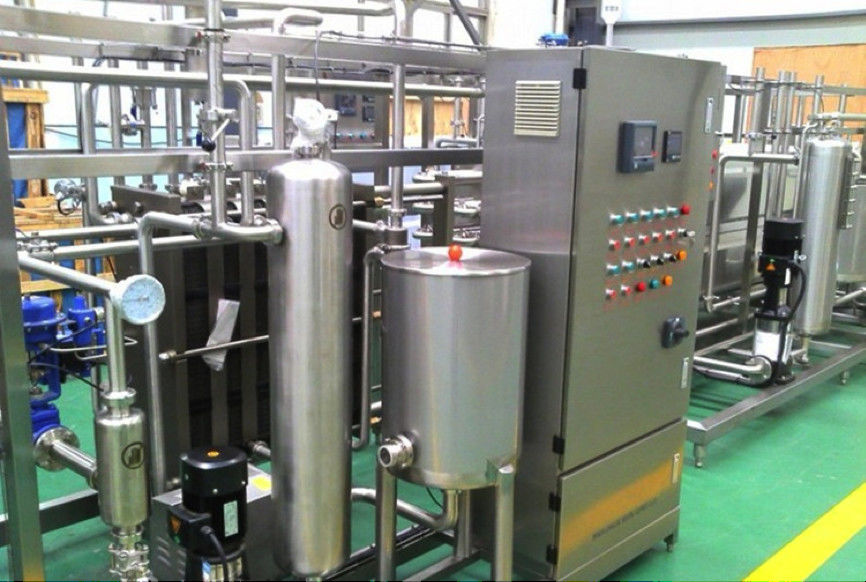

Pasteurizer

consists of plate heat exchanger, balance tank, pump, hot water circulation system (including: mixer of steam and water, hot water pump, steam adjusting valve and water level control, etc) and computer control system for pasteurization program, CIP program, temperature control, this is used in heating and cooling raw material.

Pasteurizer is usually used in the processes of milk, ice-cream, milk powder, fruit juice, beverage, etc which is sensitive to heat. The material is pumped to the plate heat exchanger, then been preheating, holding, heat energy recover, cooling and all this can keep the products original physical nature and taste. If the temperature is below the set degree, it is sensed by a temperature transmitter and a signal activates flow diversion valve and the material flows back to the balance tank, then the material is pasteurized again. The state of the pasteurization temperature is recorded on a disc of the recorder in process of pasteurization.


fruit juice pasteurizer YGT-PS-1 YGT-PS-2 YGT-PS-3 YGT-PS-4 YGT-PS-5
Product capacityT/h 1 2 3 4 5
Heat exchanging area m2 16 26 38 46 56
Materal inlet temperature ºC 5 5 5 5 5
Materal inlet temperature ºC 5 5 5 5 5
Sterilizing temperature 137 137 137 137 137
137Warmkeeping timeS 4 4 4 4 4
Ice water temperature ºC 1 1 1 1 1
Ice water cos T/h 3 4 6 8 12
Jiont size mm φ 25 φ 38 φ 38 φ 51 φ 51
Weight kg 980 1080 1160 1350 1680
Size mm 1500 * 1500
* 2000
1900 * 1800
* 2200
1900 * 1800
* 2200
1900 * 1800
* 2200
2600 * 2200
* 2500
power kw 3 4 5 6 6


.jpg



Semi-automatic plate sterilizer



Semi-automatic plate sterilizer    6
