Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine

Certification
China KUNSHAN YGT IMP.&EXP. CO.,LTD certification
China KUNSHAN YGT IMP.&EXP. CO.,LTD certification
Customer Reviews
I thank you very much for your intervention in this, once again you show me your professional and leadership conditions for me.

—— Ricardo Torres Girardi

the machine run well. that is good for starting small, and eventually grow big.

—— Emanueli ngowi airtl

It was a great pleasure to meet you today, and thank you for sparing time to visit us. exist equipment run well. Further to our meeting we wish to add one more equipment of the aseptic filling machine ,we also agreed to include a tubular pasteurizer complete with a chiller and boiler. We look forward to establish a lasting relationship .

—— Daniel

the spare parts is right to match the filling machine. thanks for your efficient work and quick response. Now clients is happy and start normal production. we keep in touch.

—— RONALD KYASIIMIRE

I'm Online Chat Now

Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine

Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine
Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine
Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine

Large Image :  Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine

Product Details:
Place of Origin: shanghai
Brand Name: QJ
Payment & Shipping Terms:
Minimum Order Quantity: ≧1
Price: FOB$20000-200000/unit
Packaging Details: International standard package or your request
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 1-10units/40days

Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine

Description
Material: SUS304 Capacity: 500-50000 Kg/hour
Control Type: PLC+Touch Screen Warranty: 1 Year
After Warranty Service: Video Technical Support Voltage: 380V/ Customized

Products Description

Introduce

Tube sterilizer it's mainly composed of steam system, material system, hot water system, cooling system, reflux system, CIP cleaning system and control system. The materials are heated to 90-140 ℃ by pump input heat exchange from the balance tank, then constant temperature at 95-98 ℃, and finally cooled to 35-85 ℃ for filling.The whole process takes place in a closed state.The system can be equipped with variable frequency control to adapt to different packaging speed, and can be used with the central CIP system. The electrical control system of the equipment USES the whole process (from the cleaning of the equipment to the heat treatment of the material).The electric control cabinet is equipped with 10 "color touch screen, which monitors the work of the whole equipment. The deviation will be issued and controlled and adjusted by the PLC control system to ensure the effective work of the equipment.

Advantage

1. High heating efficiency , with 90% heat recovery system; 2. Low temperature gap between heating medium and product; 3. Highly automatic control system, auto control and record CIP cleaning system, self sterilize system, product sterilize system; 4. Accurate control sterilize temperature, auto control steam pressure, flow rate and product rate etc. ; 5. Product pipe wall use advanced technology for polishing and automatic welding , pipe can be self cleaned automatically, whole equipment self sterilize, which make sure whole system aseptic; 6. This system with high safety performance, all spare parts use good quality brand, and have pressure protect measurements and alarm system of steam, hot water and product etc.; 7. High reliability , use famous brand product pump, hot water pump, different type valve, control system electrical components; 8. Self CIP cleaning system;
Details Images

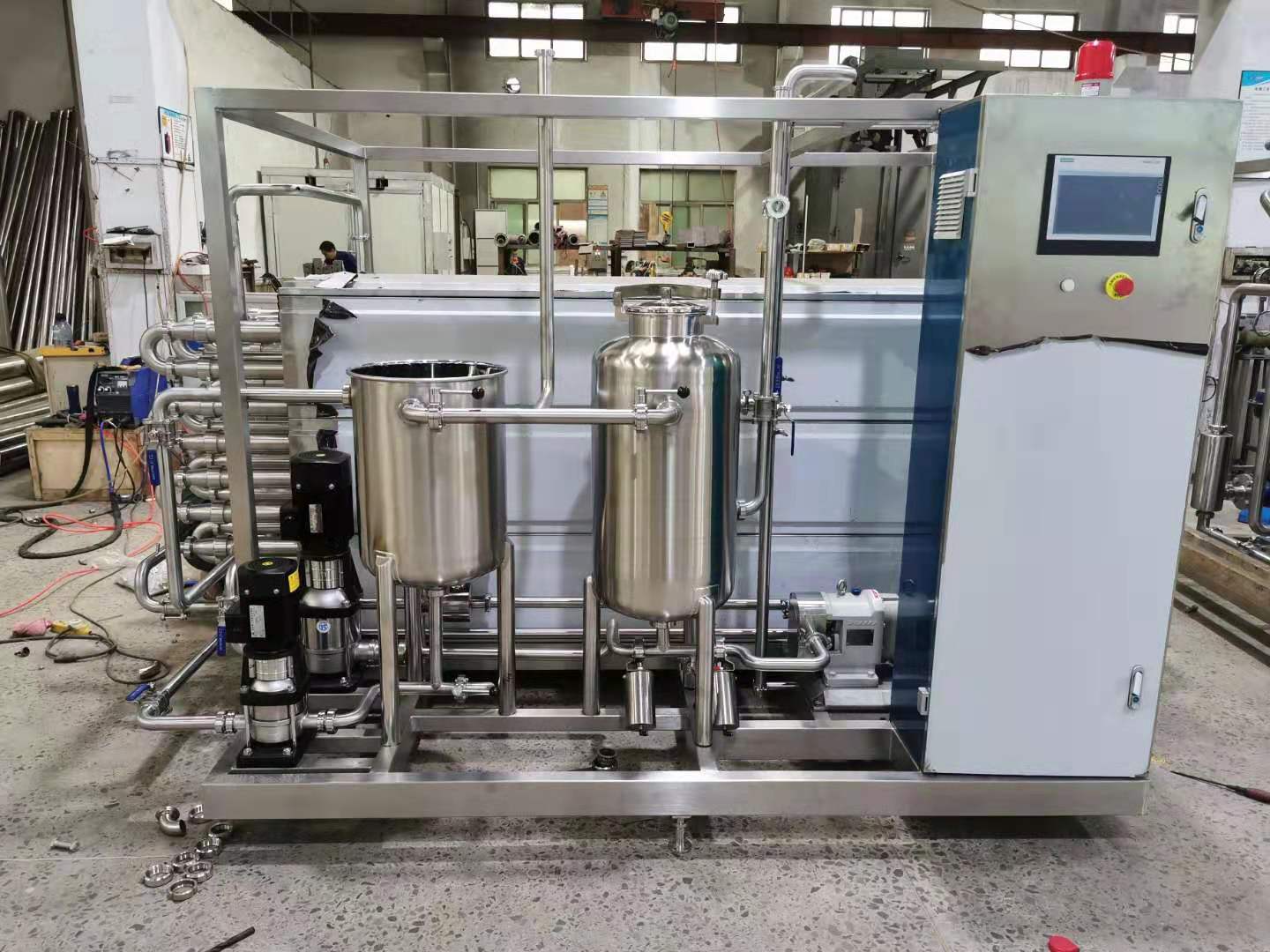

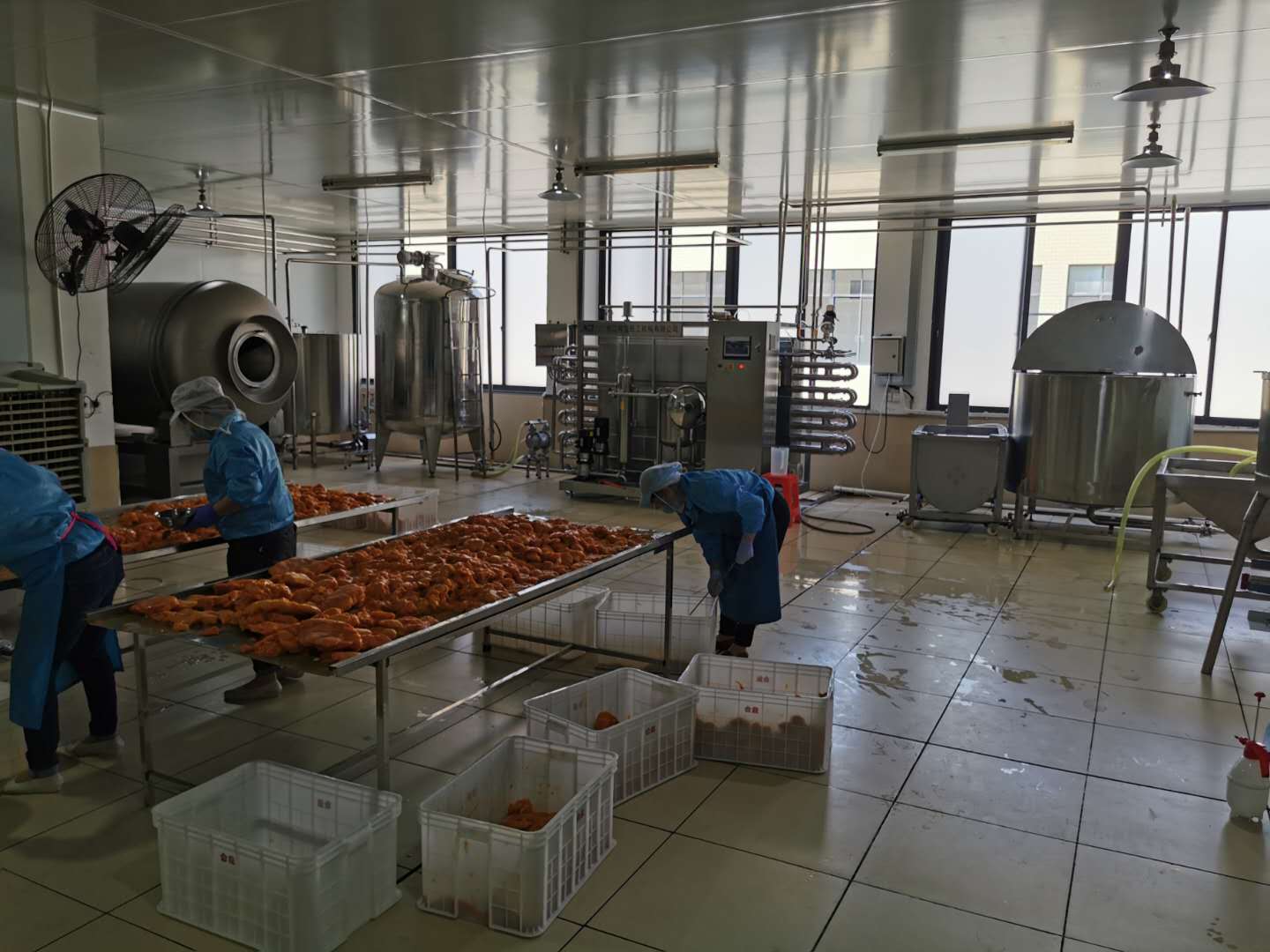

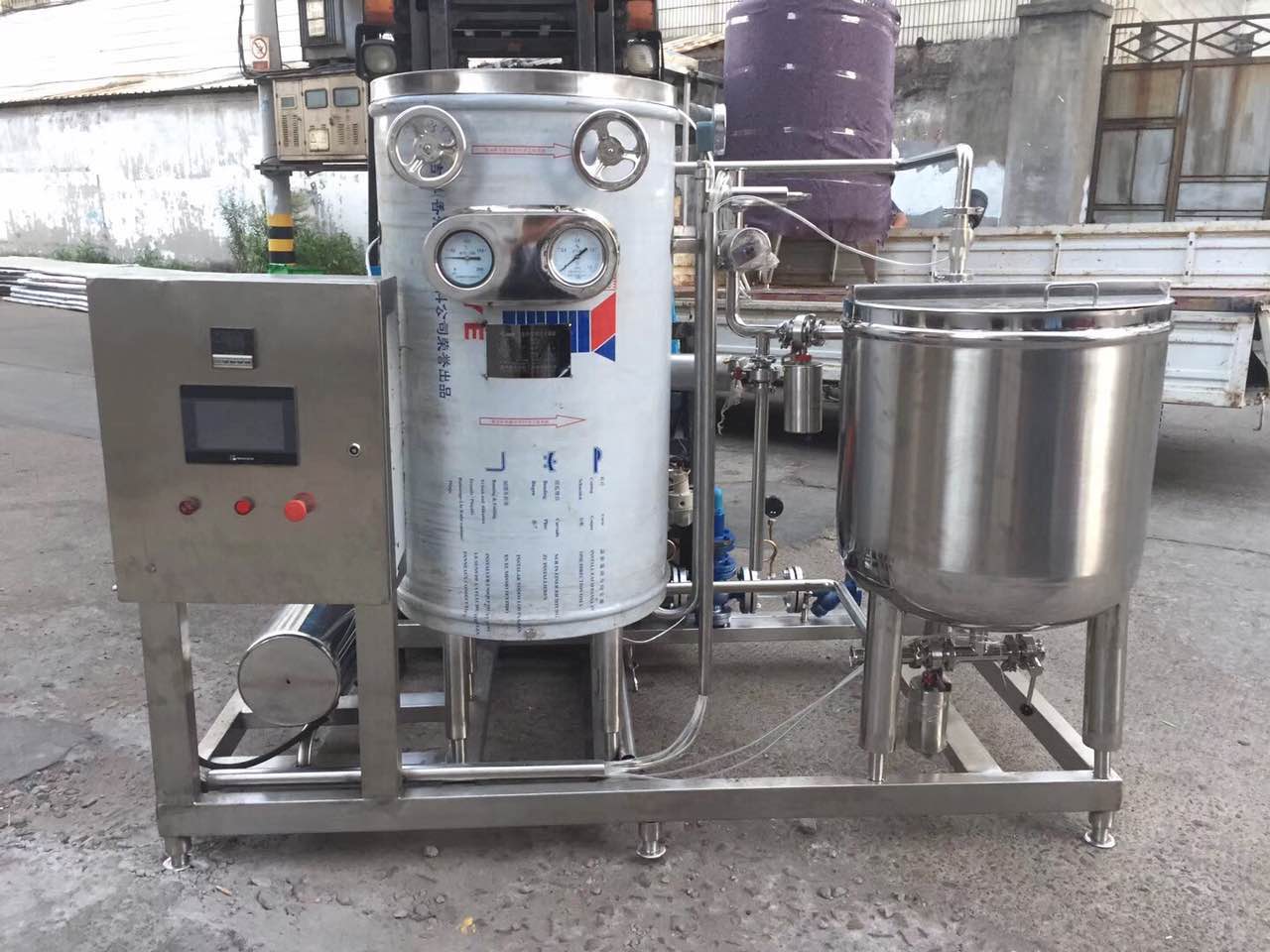

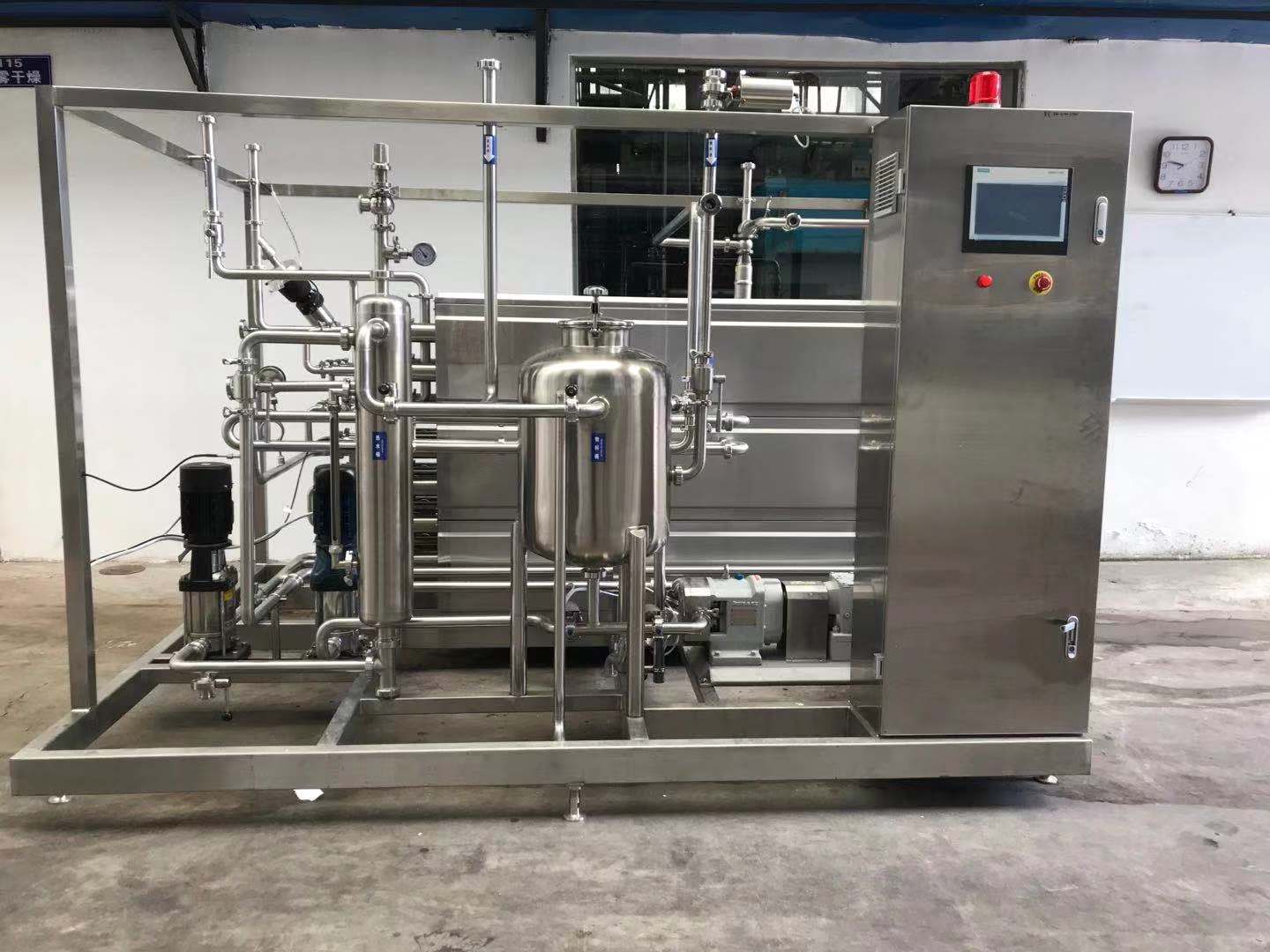

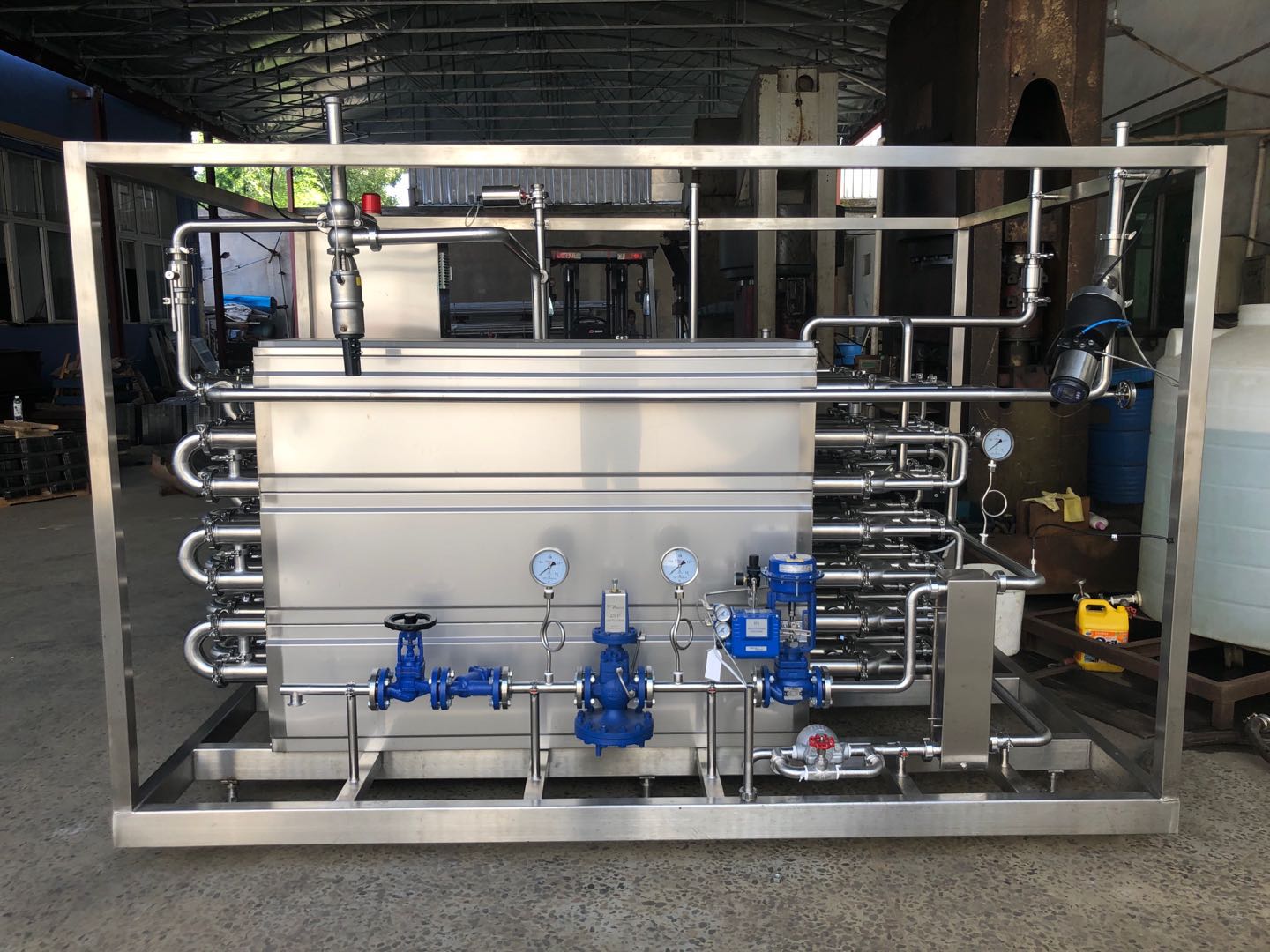

Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine 0
Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine 1
Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine 2
Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine 3
Automatic Fruit Juice Food milk Tubular UHT Pasteurizer pipe sterilizing machine 4



FAQ
1. What about your factory?
Our factory is located in Shanghai and have more than 15 years experience on machinery making .
2. How will you control the quality and delivery?
All our machines will be tested before packaging. Teaching video and packing pictures will be sent to you for checking,we promise that our wooden packaging is strong enough and safety for long delivery .
3. How to finish installing?
We can guide you through the video or photos first . If the customer need to installing on site that our engineer can be sent to your country. but customer should pay the air tickets. besides, customer should arrange the accommodation for them during the trip.
4. What do we do if we encounter problem about the machine ?
Showing us the picture or video of the problem. If the problem can be solved by your workers, we will send you solution by video or pictures. If the problem out of your control, our engineer will be sent to your factory (customer will pay the fee during the trip.
5. How about warranty and spare parts?
We provide 1 years warranty for the machine,and most of the parts can be found in local market or you also can buy the parts from us .
