Belt Type 5T/H SUS304 Fruit Pulp Extraction Machine

Description
Name: Fruit Pulp Juicer Extractor Juice Making Machine Usage: Fruit And Vegetable Juice
Model: DYJ Material: SUS304
Motor Speed: 8r/min Linear Velocity Of Filter Belt: 5m/min
High Light:

SUS304 Fruit Pulp Extraction Machine

,

Belt Type Fruit Pulp Extraction Machine

,

5T/H Fruit Pulp Extractor

Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor





1. Descriptions for Belt Type Juicing Machine



Belt type juicing machine is carefully developed by our company in combination with the advanced belt type juicing machine abroad. Belt type juicing machine is widely used in juice extraction and environmental protection process of fruits and vegetables. The utility model has the advantages of energy saving, automatic feeding and discharging, continuous operation, full pressure filtration and extremely low juice content of the filtering residue.

The main part of belt type juicing machine is composed of frame, upper and lower drive shafts, deceleration drive assembly, filter press belt, filter press belt washing device, feed device component, distribution device, tension device, belt deviation correction device, pressurization device, slag scraping device, safety protection device, pneumatic and electrical control components, cleaning water filtering device,etc.

In addition to being widely used in food and beverage processing enterprises, Belt type juicing machine can also be used for pressure filtration and dehydration of powdery materials in chemical industry, environmental protection, light industry and other industries.



2. Specifications for Belt Type Juicing Machine



Model DYJ-3 DYJ-5 DYJ-10 DYJ-20
Production capacity(t/h) 1~3 3~5 10~12 20~22
Total power 20.38 21.18 22.25 41.37
Main drive moto speed(r/min) 8 8 8 5
Linear velocity of filter belt (m/min) 5 5 5 5
Feed feight(mm) 1900 1900 2000 1920
Outline size(mm) 3230×1600×2000 4000×2085×2505 5000×2880×2505 5420×3380×2050
Host power 2.2 3 4 5.5
Power of distributing roller 0.55 0.55 0.75 0.75
Compressed air Pressur (Mpa) 0.7 0.7 0.7 0.7
oxygen consumption (m³/h) 1 1 1 1
Wash water return pump Power (kw) 3 3 3 5.5
Flow (m³/h) 25 25 25 25
Lift (m) 20 20 20 20
Spray high pressure pump Power (kw) 15 15 15 15*2
Flow (m³/h) 16 16 16 16*2
Lift (m) 165 165 189 189



3. Feature and Advantage for Belt Type Juicing Machine



• Main structure made of SUS 304 stainless steel.

• Using Mirror welding tech to ensure tidy and smooth welding line.

• Advantages of energy saving



4. Usages for Belt Type Juicing Machine



Belt type juicing machine is widely used in juice extraction and environmental protection process of fruits and vegetables and Belt type juicing machine can also be used for pressure filtration and dehydration of powdery materials in chemical industry, environmental protection, light industry and other industries.

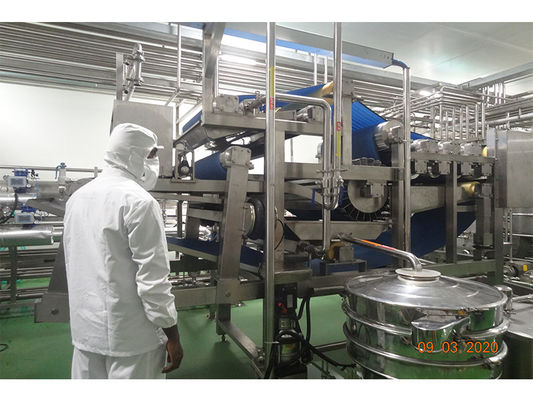

5. More Picture for Belt Type Juicing Machine



Belt Type 5T/H SUS304 Fruit Pulp Extraction Machine 0

Production Process for Belt Type Juicing Machine

The refined raw materials (solid liquid mixture) are continuously pumped into the hopper by the progressing cavity pump (the bandwidth occupied by the material can be adjusted) and distributed evenly by the distributing roller. A large amount of water is slowly squeezed out of the lower wedge to form a squeezable filter cake, In the press area, a pressure roller with an "L" shaped strip presses out the water and ensures that the water flows out quickly on both sides. The diameter of the press roller at the back is decreasing, and the filter belt is in the shape of "S", which produces a shear force of decreasing surface pressure, which ensures the dehydration effect. To further increase the rate of dehydration, a pressure roller is added to generate linear pressure and peripheral pressure. After dehydration, the filter cake is scraped by wear-resistant scraper. The two filter belts are continuously washed by high-pressure nozzle, so that the filter belt can keep the effect of juice. Spray washing water through the reflux pump through the arc filter screen automatic filtration, slag discharge, recycling use, energy saving. The filter belt is made of nylon yarn warp and weft.



6. Our Company

Belt Type 5T/H SUS304 Fruit Pulp Extraction Machine 1

Our company mainly work for aseptic filler, sterilizer, juice extractor etc fruit processing equipment, all our engineer team work in this process industry with 12 years experience, except single key machine, we could also provide turnkey project solution. We have cooperated with many well-known dairy and beverage processing factories, such as China's Guangming Dairy, Mengniu, Yili, etc.

7. Service for 2T/Hr Screw Juicer Machine Food Production EquipmentBelt Type 5T/H SUS304 Fruit Pulp Extraction Machine 2
(1) Reply in 24 hours
(2) Providing professional solutions
(3) Every product will be tested before the delivery
(4) Delivery on time and excellent after-sale service
(5) High quality, reliable price

8. Certification
Belt Type 5T/H SUS304 Fruit Pulp Extraction Machine 3

9. FAQ
1. Who are we?
We are based in Shanghai, China, start from 2006,sell to Mid East(15.00%),Eastern Asia(15.00%),Western Europe(12.00%),North America(10.00%),Africa(10.00%),Southeast Asia(10.00%),Northern Europe(6.00%),South America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South Asia(4.00%),Southern Europe(3.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
sterilization machine,pasteurizer machine,heat exchange,CIP system,filling machine

4. Why should you buy from us not from other suppliers?
1. update the technology every year, and with many sole patent 2. choose top international brand for as material and part, to guarantee equipment steady 3. long term available for spare parts like sealing and gasket

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese,German,French,Korean,Italian
