Fruit Paste Concentrates Aseptic Bag Filler / Aseptic Bag Filling Machine

Fruit Paste Concentrates Aseptic Bag Filler / Aseptic Bag Filling Machine
Fruit Paste Concentrates Aseptic Bag Filler / Aseptic Bag Filling Machine Fruit Paste Concentrates Aseptic Bag Filler / Aseptic Bag Filling Machine

Large Image :  Fruit Paste Concentrates Aseptic Bag Filler / Aseptic Bag Filling Machine

Product Details:
Place of Origin: CHINA
Brand Name: YGT
Certification: SGS,ISO
Model Number: YGT-AB
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: WOODEN BOX
Delivery Time: 50 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 5 SETS /MONTH

Fruit Paste Concentrates Aseptic Bag Filler / Aseptic Bag Filling Machine

Description
Name: Aseptic Bag Aseptic Filler Machine Material: SUS304 Stainless Steel
Capacity: 1-8000L/H Filling Range: 1L-200L,1000L/1400L
Color: Silver
High Light:

aseptic bag filling machine

,

aseptic filling equipment

,

concentrated juice aseptic bag filling machine

Fruit Paste Concentrates Aseptic Bag Filler / Aseptic Bag Filling Machine



Application:

Suitable for filling of concentrated juice, puree, paste etc.



Specification:



A. Fruit Paste aseptic filling machine is used for the filling of liquid and semi-ropy concentration products. The filling head can be one or two according to the required capacity.

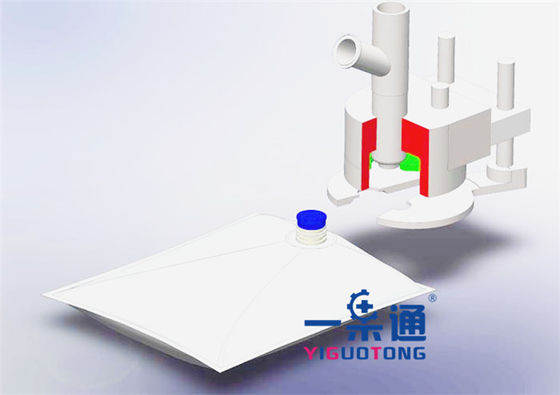

B.The machine is composed of control system, filling head, bag nozzle fixed pincers, lid opening pincers, lid close pincers, inspection window and lifting platform.







C.PLC automatic control, touch screen to do parameter setting, the lifting platform can lift automatically during the filling to avoid the second pollution caused by the lifting of filling head.







D.The filling volume of the bag is controlled by imported flow meter and electric weighing sensor.







E. When it reaches the setting volume, filling machine can seal the lid automatically then the lifting platform rotary to prepare the next barrel.



Technology Parameter:



Type YGT-AB
Processing capacity 1-3T/H
Compressed air 0.3Mpa
Steam consumption 100kgs per hour
Total power 4.5KW
Dimension 2700x1800x2800mm (L×W×H)
Gross weight 800kg
Applicable bag volume 5-220L
Applicable bag material aluminum compound multi-layer



Fruit Paste Concentrates Aseptic Bag Filler / Aseptic Bag Filling Machine 0

Fruit Paste Concentrates Aseptic Bag Filler / Aseptic Bag Filling Machine 1
