Filling Equipment Spare Parts Ultrasonic Oil Level Transmitter 6.8GHz 26GHz

Filling Equipment Spare Parts Ultrasonic Oil Level Transmitter 6.8GHz 26GHz
Filling Equipment Spare Parts Ultrasonic Oil Level Transmitter 6.8GHz 26GHz

Large Image :  Filling Equipment Spare Parts Ultrasonic Oil Level Transmitter 6.8GHz 26GHz

Product Details:
Place of Origin: CHINA
Brand Name: YGT
Certification: SGS,ISO
Model Number: S3000T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: carton or wooden carton
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 10000 Set/Sets per Month

Filling Equipment Spare Parts Ultrasonic Oil Level Transmitter 6.8GHz 26GHz

Description
Name: Level Transmitter Material: SUS304 Stainless Steel
Frequency: 6.8GHz ; 26GHz Application: Silicone, Vegetable Oil;
Output: 4~20mA
High Light:

liquid filling machine parts

,

vortex flow meter

Level transmitter,Ultrasonic oil level transmitter



 Suit to measure high-temperature, high-viscosity, corrosive and crystalline liquids;



Measuring range(not drifting):0-6kPa~40MPa;



Filling liquids: silicone, vegetable oil;



Plane diaphragm style: 50mm, 100mm and 150mm extended type;



Isolating diaphragm: 316L stainless steel, Hastelloy C, Ta, EFP-coated stainless steel 316L, PFA-coated stainless steel 316L, PTFE foil.

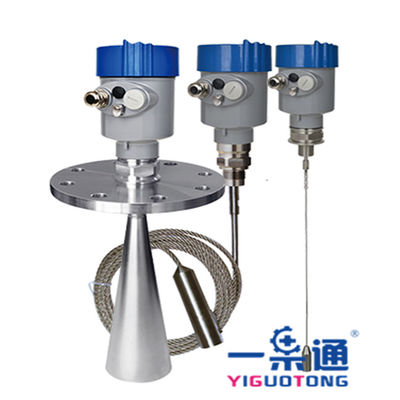

Radar Lever Meter---Basic Production Information
Frequency 6.8GHz ; 26GHz
Beam Angle
  Model Beam Angle
081 ; 082 24°
083 14°;16°;20°(according to the size of connection)
805 22°
806 ;807 8°;12°;18°
808;809 6°;8°;12°
Measuring range 0~35m or 0~70m
Repeatability +/-2mm
Resolution 1mm
Sampling Echo Sampling 55times/S
Responding speed >0.2S
Output 4~20mA
Accuracy 0.1% accuracy
Antenna material Model Material
  081 PP or PTFE
082;805 PTFE
083;806 SS316L
807;808;809 SS316L
Communication HART/RS485/MODBUS
Connection
  Model Size of Connection
081
082;083
805;806
807;808;809
Power Supply 24V DC(+/-10%) Ripple voltage:1Vpp
Enviroment Temperature:-40~70℃;Pressure:-1...40Bar
Exploson Exia Ⅱ CT6
Protection IP67
Electrical Interface Double M20*1.5 or Double 1/2NPT
