Juice Beverage Wine SS UHT Sterilization Machine SUS304 Milk Sterilizer Machine

Description
Name: Stainless Steel Uht Milk Sterilizer Machine Usage: Sterilization
Material: SUS304 Heating Precision: ±0.5°c
Type: Ultra High Temperature Heating Source: Steam Heating
High Light:

milk sterilizer machine

,

juice pasteurization equipment

Juice Beverage Wine SS UHT Sterilization Machine SUS304 Milk Sterilizer Machine

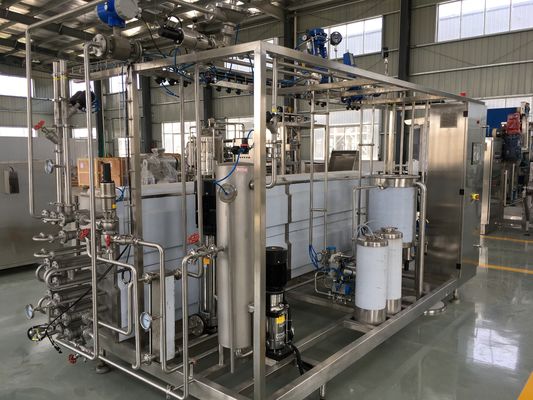

Tubular sterilizer is primary product in our company. This machine is widely used in sterilization of milk, concentration juice, jam, tea beverage and other high viscosity materials. Four layer casing structure, the material layer has diversion device, both sides heated by superheated water. It is the first choice of concentrated fruit juice and jam sterilization with advantages of short heating time, great sterilization effect and low energy consumption.



Parameters



Model YGT-0.5 YGT-1 YGT-3 YGT-5 YGT-10
Capacity 500L/H 1000L/H 3000L/H 5000L/H 10000L/H
Inlet Temperature 25℃-45℃ 25℃-45℃ 25℃-45℃ 25℃-45℃ 25℃-45℃
Sterilizing time 2-120S or costomized
Sterilizing Temperature 95~138℃ 95~138℃ 95~138℃ 95~138℃ 95~138℃
Outlet Temperature 25℃-40℃ 25℃-40℃ 25℃-40℃ 25℃-40℃ 25℃-40℃
Steam pressure 0.6MPa 0.6MPa 0.6MPa 0.6MPa 0.6MPa
Steam consumption ~100Kg/h ~150Kg/h ~300Kg/h ~700Kg/h ~1000Kg/h
Power 10KW 18KW 25KW 37KW 48KW
Dimension 3500×1600×1500 4200×2200×1600 5000×2250×1700 5500×2500×1800 7500×3500×2200
Wight 1200kg 2000kg 2800kg 3800kg 7000kg
Production Features



1. stainless steel SUS 304 material besides motors, electrical appliances, soft connections.

2. Bring in CIP/SIP system, sterilizing pipes do aseptic treatment at high temperature for 125 degrees before production and after sterilization.

3. The control system composed by human-computer interface and PLC, easy to operate.

4. Sterile protection for pipe joints and connection points, strictly guarantee product quality.

5. Bring in heat recovery system, energy saving more than 30% the same industry.

6. The overall design has better pass efficency, can ensure the flow speed and heating time of the viscous materials.

7. Our machine can save 30% energy than the same industry becuse of the structural reasons.

8. The main team valve of our equipment is SpiraySarco brand and the main electrical equipment is SEIMENS brand.
