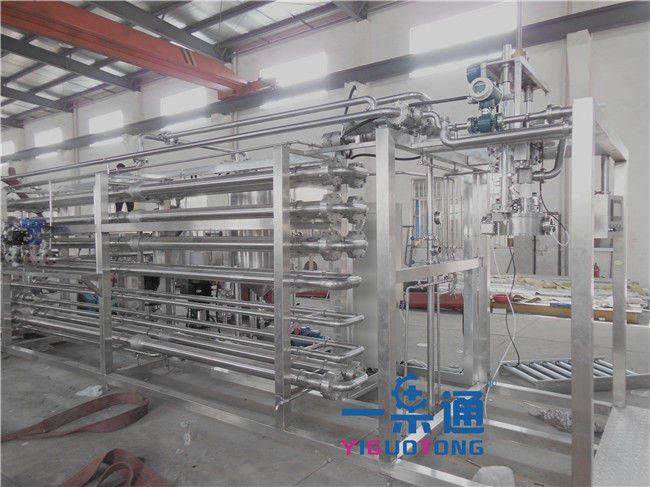

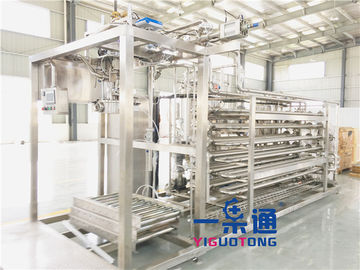

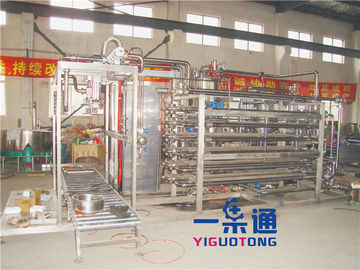

Compact Aseptic Sterilizer Filler Monoblock

Compact Aseptic Sterilizer Filler Monoblock
Compact Aseptic Sterilizer Filler Monoblock Compact Aseptic Sterilizer Filler Monoblock Compact Aseptic Sterilizer Filler Monoblock Compact Aseptic Sterilizer Filler Monoblock

Large Image :  Compact Aseptic Sterilizer Filler Monoblock

Product Details:
Place of Origin: CHINA
Brand Name: YGT
Certification: SGS,ISO
Model Number: YGT-AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: WOODEN BOX
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 10000 Set/Sets per Month

Compact Aseptic Sterilizer Filler Monoblock

Name: Aseptic Sterilizer And Filler Monoblock Material: SUS304 Stainless Steel
Packaging Type: Bags Application: Bagssterilizer And Filler Monoblock
Driven Type: Electric Certification: CE ISO SGS UL
High Light:

automatic liquid filling machine


liquid packing machine


Aseptic Sterilizer Filler Monoblock

Monoblock automatic washer filler capper small bottle fruit juice filling machine


Main Features


User-friendly,flexible and reliable

All components preasembled,Easy to install

Compact structure,sterilizing and filling connect as one unit

Complete sanitation by an automatic CIP system

Improved reliability from a fully PLC controlled selfdiagnostic operational mode

Greater versatility by meeting various packing standards for different products.


The unit is equipped with:

Full SUS304/SUS316L stainless steel pipe,valve,frame and tank

Set of steam protect pipe,valve,gauges

Positive-material pump (mono or piston type)for product feed

Tular or Tube-in-tube heat exchanger as request equipped with sterilization,holding,cooling and product recycling sections.

Overheated water preparation system equipped with modulating valve for steam supply and relevant fitting and cooling water control valves.

Flanges and valves equipped with special aseptic steam barriers.

Aseptic filler with 1 or 2 heads suitable for filling of bags with 1" diameter type.

Brand flowmeter to precise control liquid filling flow

Rpller convey

Operation parameters and recipes are supervised and controlled by a PLC


Name Description Qty
Tubular Pasteurizer &aseptic filler monoblock

-Tube in tube pasteurizer part

Material: for citrus juice(clear and cloudy), with 15-20% pulp, particle size <5mm, brix 5-65
Design Capacity : 2,000L/h

Pipe Pressure: 5.0Mpa

Total Power: about 10kw

Size: 4500x2000x2700mm, 2100kgs

Cooling water Pressure: 0.3Mpa

Cooling water Temperature: <2℃

Ice water consumption: 6T/h

Air compressor Pressure: 0.6Mpa

Compressor air consumption: 0.1M3/min

Steam feeding Pressure: 0.6Mpa

Steam working Pressure: 0.5Mpa

Steam consumption: 200kgs/h

-Aseptic filler head & frame system with pasteurizer

Capacity: 1000L/h-2000L/h

Filling Range: 220L/drum

Filling head: 1 inch, ELPO

Material: contact part SUS316L, frame SUS304,

-Roller Conveyor, Size: App 2400(L)x800(W)mm,

-Control system for filing
