Automatic Bag in Box filling and capping machine
1. Machine Specification
This bag-in-box filling machine is specially designed for small bag-in-box package ,adopting flowmeter measuring with high filling precision. And easy to adjust filling volumes. It is widely used for filling water, grape wine, edible oil. juice, dairy, syrup, mayonnaise, seasoning etc.
1. This machine is mainly made of stainless steel, enjoy beautiful appearance. The parts that contact material are made of 304#/316L stainless steel and food grade soft pipe.
2. Full automatic finish filling pulling out the cap, vacuum pumping, quantitative filling, pressing the capping at one step.
3. Adopts flowmeter for measuring which is with high filling precision, Easy to adjust filling volumes.
This machine is with vacuum function, Enable to vacuum pumping before filling which helps to extend product shelf life.
5. A nitrogen system can be added according to the client’s requirement;
6. The electric and pneumatic components are products of world-renowned brands with low failure rate, reliable performance and long service life.
7. It is controlled by PLC and touch screen with accurate precision and stable performance; match with CIP washing function.

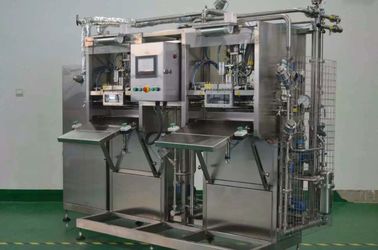

Automatic aseptic filling machine is specially designed for large capaciy filling. It occupies less areas, works stably and operates conveniently. Using Aseptic filling machine Food can be stored for more than one year at room temperature, which reduces the low temperature refrigerating transportation costs and risks.(concentrated juice and jam can be saved for more than 2 years at room temperature.)
Aseptic filling machine can be directly connected to the sterilizer, direct filling the product after UHT sterilization into the aseptic bags. Aseptic aluminum plastic compound multi-layer bags can effectively isolate sunshine and oxygen and maximize the guarantee product quality.
Temperature control system automatically adjusts the room temperature and the steam jet method is used for the sterilization for the bag mouth and filling room.
|Filling range||1-30L(adjust filling volume on the touch screen)|
|Working principle||flowmeter to control|
|Filling speed||400-500bags/h(for 1L) 180-200bags/h(for 5L)|
|Meterial entrance pressure||≤0.3-0.35Mpa|
