Product Details:
|
| Name: | BIB Filling Machine | Volume: | 5-25L |
|---|---|---|---|
| Material: | SUS304 | Application: | Water, Oil, Egg Liquid, Juice Etc |
| Highlight: | bag in box filling machine,liquid filling equipment,oil water bib filling machine |
||

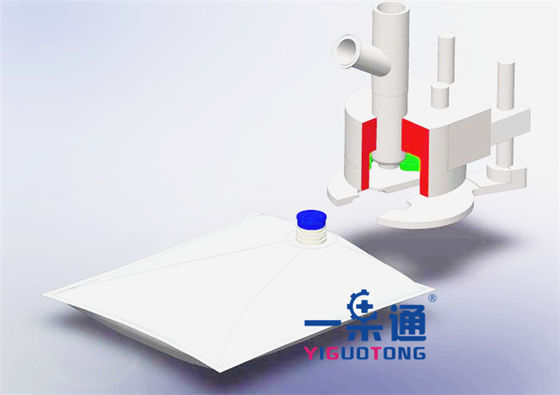

BIB filling machine for oil water, 5L bib bag pacakge machine
Features:
1) The filling packing machines are designed for liquid composite soft packing bags;
2) Unique design lets us turn on caps and filling and pressure caps with coherent motion
3) Roots flow meter with 3 high accuracy and equipped with imported multifunction secondary instrument with LCD display makes capacity adjustment simple, quick and accuracy;
4) All of main air-actuated and electrical parts are imported parts, which ensures the steady performance and excellent quality of the machine;
5) The machine are set up with an elevated tank, a system of inner circle pump and equipped with control device for outer pump, which makes the install simple, convenience and quick.
| Main technical parameters | |
| Model No. | YGT-BIB-1 |
| Filling capacity | 5 - 25L (soft package) |
| Production capacity | 180 - 220 bags/h (22L/bag) |
| Filling accuracy | ≤0.3% |
| Power supply | 3N - 380V±10% |
| Power consumption | ≤1kW |
| Power of outer pump | ≤3kW |
| Air source pressure | 1.0 - 1.2MPa |
| Working air pressure | 0.6 - 0.7MPa |
| Application |
Suitable for oil,cooking oil,edible oil,rapeseed oil,vegetable oil etc suitable container: BIB bag,soft bag,jerrycan |
