|Name:||Separate Type Vertical CIP System||Material:||SUS304|
|Type:||Cip System||Color:||To Was Pipe, Tank System|
cip cleaning system,
clean in place system
CIP Cleaning System For Milk And Juice / Separate CIP System For Juice Production Line
full automatic CIP cleaning system
The operating principle of the full automatic CIP cleaning system means that the tank body, pipelines, pumps and all valves and also the whole processing line are cleaned on line no need to disconnect the pipes or the equipment, all cleanings are done at the closed circuit.

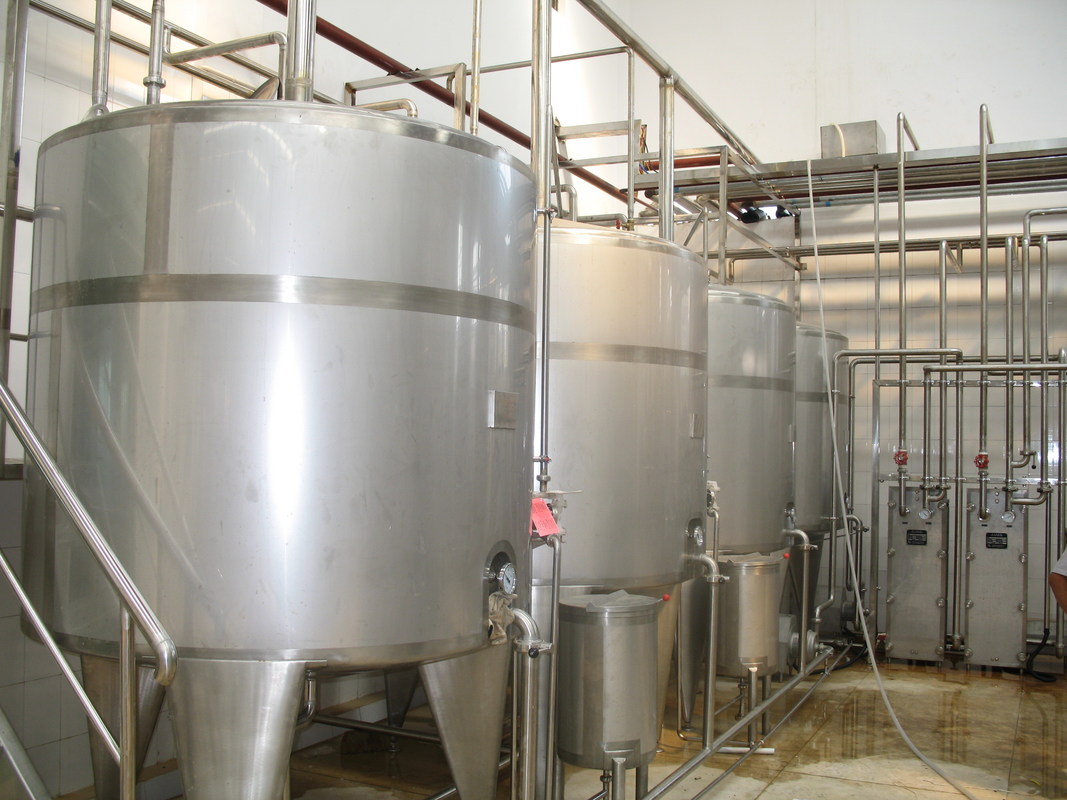

(1). CIP cleaning liquid storage tanks (include acid tank alkali tank, hot water tank, clean water tank).
(2). Two not big storage single layer tanks for concentrated acid and alkali.
(3). CIP forward and return pumps.
(4). Two diaphragm pumps for acid/alkali concentrated.
(5). Heat exchanger (plate or tubular type).
(6). One electrical appliance box.
(7). One set of controlling pipe and valve component.
(8). One set of automatic performance components and parts and the electrical appliance material.
(9). CIP cleaning liquid storage tank can be ranged from 1,000 liters to 10,000 liters.
(10). According to the customer’s requirements, we can make the double circuits, three circuits, four circuits and so on. Meanwhile we can make multi circuits operating at the same time.
(11). Heating way can be plate type, coil tube type or tubular type.
This system adopts the PLC program to control, with the colored touch screen to operate and display the whole process flow and also the each controlling parameter. The temperature of the cleaning liquid can be installed. It can set the pH value, the cleaning time, cleaning sequence and also the refluence pH value. With the system malfunction alarm device.
|Operating temperature||Water tank||Normal||Normal|
|Acid-base tanks||60-80 ℃||60-80 ℃|
|Steam pipe||138.8 ℃||138.8 ℃|
|Washing Procedure||Water → alkali liquor → water → acid liquor → water|
|Centrifugal pump||Motor power||4KW,20M3/H||As per system|
|PneumaticDiaphragm pummp||As per request||1000L/h||Acid and alkali resistant|
|Plate heat exchanger||Area||6m2-24m2, SUS304||As per system|
|PLC Control Cabinet||International brand||Full/semi automatic|
