Mango Pulp Pineapple Juice Aseptic Filling Equipment Of 200L Bag In Drum

China Mango Pulp Pineapple Juice Aseptic Filling Equipment Of 200L Bag In Drum supplier
Mango Pulp Pineapple Juice Aseptic Filling Equipment Of 200L Bag In Drum supplier Mango Pulp Pineapple Juice Aseptic Filling Equipment Of 200L Bag In Drum supplier Mango Pulp Pineapple Juice Aseptic Filling Equipment Of 200L Bag In Drum supplier

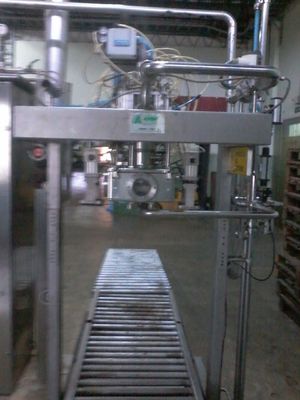

Large Image :  Mango Pulp Pineapple Juice Aseptic Filling Equipment Of 200L Bag In Drum

Product Details:

Place of Origin: CHINA
Brand Name: YGT
Certification: CE
Model Number: YGT-AS

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: usd20000-100000
Packaging Details: EXPORT STANDARD
Delivery Time: 45 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 10 SETS PER MONTH
Contact Now
Detailed Product Description
Automatic Grade: Automatic Driven Type: Electric,Pneumatic,pneumatic Aseptic Liquid Filling Machine
Application: Fruit Paste, Juice Voltage: 380V/50hz
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Type: Filling Machine Packaging Type: Bags
Weight: 600kgs Warranty: 1 Year
Capacity: 3 Tons/hour-8T/h

automatic aseptic filling machine,industrial aseptic liquid filler for fruit concentration



This aseptic filling machine is applicable to the aseptic filling of fruit pulp, fruit paste and fruit jam concentrate, milk such tomato paste, strawberry paste, blackberry paste, carrot paste, peach paste, apricot paste, onion paste, chili paste. The aseptic filler is with two type one filling head and double filling heads.

The filling head can be one or two according to the required capacity.

Characteristics:

  • The machine is composed of control system, filling head, bag nozzle fixed pincers, lid opening pincers, lid close pincers, inspection window and lifting platform.
  • PLC automatic control, touch screen to do parameter setting,
  • The filling volume of the bag is controlled by imported flow meter or electric weighing sensor. It is separate from this offer. When it reaches the setting volume, filling machine can seal the lid automatically
  • The filling chamber can keep the aseptic temperature95℃to guarantee the aseptic environment during the filling process.
  • Sterilizer the cap & spout of the bag and the filling chamber by means of steam spraying.
  • Filling head, automatic electric weighing sensor system; control system of sterilizing, cleaning; separate automatic control system which connects with the CIP device; self-diagnosis system; The control panels is OP and PLC which can realize the material conveying, signal conversion. The control component is SIEMENS.

Main technical Parameter of aseptic filling machine:

General  bag size 1-220L bag in drum
Data capacity 3000~4000l/h, Normal food liquid
  power 1.1kw
consumption hot steam 20-30kgs/h
  hot steam pressure 0.3Mpa
  air compressor 0.6Mpa
shipment weight 600kgs
  size 3000x2000x2500mm
  Packing wooden case












Mango Pulp Pineapple Juice Aseptic Filling Equipment Of 200L Bag In Drum
