304 /316L Stainless Steel 220l Aseptic Bag Filler Equipment 12 Month Warranty

China 304 /316L Stainless Steel 220l Aseptic Bag Filler Equipment 12 Month Warranty supplier
304 /316L Stainless Steel 220l Aseptic Bag Filler Equipment 12 Month Warranty supplier 304 /316L Stainless Steel 220l Aseptic Bag Filler Equipment 12 Month Warranty supplier 304 /316L Stainless Steel 220l Aseptic Bag Filler Equipment 12 Month Warranty supplier

Large Image :  304 /316L Stainless Steel 220l Aseptic Bag Filler Equipment 12 Month Warranty

Product Details:

Place of Origin: CHINA
Brand Name: YGT
Certification: CE ISO
Model Number: YGT-AF

Payment & Shipping Terms:

Minimum Order Quantity: 1 SETs
Price: USD30000-50000
Packaging Details: EXPORT STANDARD PACKAGE FOR OCEAN
Delivery Time: 55 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 20 SETS/MONTH
Contact Now
Detailed Product Description
After-sales Service Provided: Overseas Third-party Support Available Warranty: 12 Month
Material: 304 /316L Stainless Steel Name: Aseptic Filler
Capacity: 500-6000l/h Function: To Fill The Juice Into Aseptic Bag
Process: Bag Feeding--filling--capping Type: Single Head/ Double Head



Aseptic Filling machine Description:



Application

widely used in fruit juice, fruit pulp and jam for liquid food aseptic packaging.

Filling range: 1L-220L,1000L/1400L

Characteristics

Automatic aseptic filling machine is specially designed for large capacity filling. It occupies less areas, works stably and operates conveniently. Using Aseptic filling machine Food can be stored for more than one year at room temperature, which reduces the low temperature refrigerating transportation costs and risks.(concentrated juice and jam can be saved for more than 2 years at room temperature.)

Aseptic filling machine can be directly connected to the sterilizer, direct filling the product after UHT sterilization into the aseptic bags. Aseptic aluminum plastic compound multi-layer bags can effectively isolate sunshine and oxygen and maximize the guarantee product quality.
Temperature control system automatically adjusts the room temperature and the steam jet method is used for the sterilization for the bag mouth and filling room.

Structure

1. The filling head (single or double), with BID filling and BIB filling type.

2. High precision electronic/mass flowmeter
3. The control cabinet by import electric components and touch screen HMI

4. The roller conveyor

Features

1. The main structure is SUS304/SUS316L stainless steel material

2. Provide a wide range of security measures (position control, measuring control, temperature control), to prevent the mechanical damage
3. The mirror surface welding technology ensures smooth welding and reduces product residues
4. The product valve and filling head movement part adopts steam barrier protection, filling chamber adopts steam sterilization
5. Adopt programmable controller to realize automatic equipment operation





Technical Data:



A 1

Double Aseptic filling head



Capacity: 4000L/h-6000L/h

Filling Range: 200L/drum

Filling Temperature: <35℃

Filling accuracy:0.5%

VolumetricMeasure: By flowmeter

Filling head: 1 inch x2pcs, Elpo

Power: 0.55kw x 2pcs

Compressed Air: 0.8Mpa

Steam consumption: 60-80kgs/h

Material: contact part by SUS304,

Match with CIP washing,

air gas-distributing cylinder

operation table


B 1

Roller Conveyor



To transport 200L drum

Size: App 3600(L)x800(W)mm,

Non power conveyor

Material: SUS304


C 1

Control system for filing



  1. Semi&automatical buttom
  2. PLC control system
  3. Steam protection system

Available to connect with sterilizer for online SIP,CIP

AirTAC air cylinder

Simens brand touch screen

Schneider brand electrical element

SUS304 electric control cabinet

Bilingual program(chinese/english)

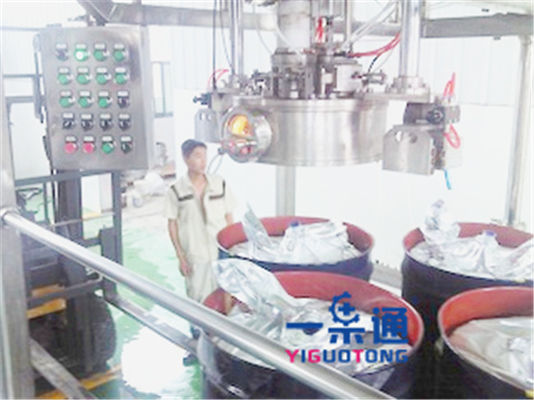

Aseptic filler picture:

304 /316L Stainless Steel 220l Aseptic Bag Filler Equipment 12 Month Warranty304 /316L Stainless Steel 220l Aseptic Bag Filler Equipment 12 Month Warranty



304 /316L Stainless Steel 220l Aseptic Bag Filler Equipment 12 Month Warranty
