Product Details:
|
Name: | Uht Sterilization Machine | Applicable Industries: | Food & Beverage Factory |
---|---|---|---|
After Warranty Service: | Online Support | Power: | 32kw |
Processing Type: | High Temperature Sterilizing | Capacity: | 100-10000kgs/h |
Highlight: | 500l/H Uht Sterilizer,30S Uht Sterilizer,120C Uht Sterilizer |

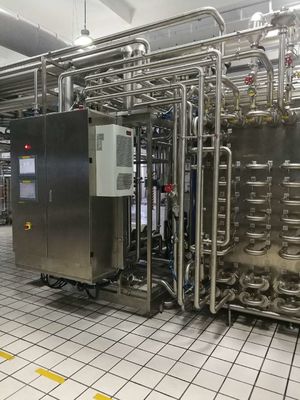

UHT Sterilizer
Product Application
This UHT tubular sterilizer is based on tubular heat exchanger . It is suited for dairy, tea drink, fruit juice , milk , beverage and other liquid products and can be used to mate with kinds of filing machines .
UHT pasteurizer is equipment designed to use sterilization and cooling method to prolong preservation period of dairy, juice , beverage and other liquid materials .
Main Feature
1) Tubular pasteurizer
2) Self-provided CIP cleaning system
3) Safety protection
4) High automation&accurate control
Technical Data:
Flow: 1-10T/h
Sterilizing Temperature: 110-140°c, as per request
Holding Time: 4/10/20/60s as per production request
Outlet Temperature: 30-40°c
The system consist of:
-- Stainless steel pipe(heating/cooling)
Material : SUS 304 or 316 L
Advantage:
1.High wear resistance and corrosion resistance
2.Working in -5°C-150°C , does not precipitate harmful substances , safe non-toxic
3.Compact design , save energy
--Sanitary Centrifugal pump
Advantage:
1.Food grade rubber stator
2. Mechanical sealing
3.Transport good flow liquid(juice/ milk etc)
-- Stainless steel tank(water tank& material tank)
Material : SUS 304 or 316 L
Advantage:
1.Made by stainless steel material , high wear resistance and corrosion resistance
2.Good sealing , reduce external pollution
3.Lightweight and durable , easy cleaning
-- Control cabinet
Material : Stainless steel control cabinet
Advantage:
1.Electrical equipment : Schneider / Siemens
2.Frequency converter : Danfoss/ Invt
3.Pneumatic components: AirTAC
4.Temperature control instrument :PT100
————————————
————————————
Plate Sterilizer
APPLICATION:
PS type is applicable to sterilize the thin liquid such as milk, fruit juice, wine etc. take the function of heating, sterilization,temperature warm and cooling .
Configuration:
Full automatical: by advanced PLC technology for program, as per the craft request, control the whole production, with CIP cleaning program for self washing.
Semi automatical: operator could control the pump, valve etc backflow on the control panel. By PID control sterilizing temperature, with the data on recorder.
Equipment composed by material pumping system, plate heat exchange system, material pipe system, steam pipe system, hot water heating system,material backflow system,temperature control system and electrical control system.
Characteristic:
1. Material and heating resource work in a self close system to achieve heat exchange and make sure safe sanitary.
2. Short sterilize time, to make sure nutrition.
3. Material all by SUS304 to reach food sanitary standard request.
4. High heat transfer effect, good heat recovery rate, low energy consumption.
5. By import brand eletronic component, valve and spare parts to prolong the use life.
6. By PLC control, automatically control each part heating temperature, water temperature, steam flow adjust, with material backflow system make sure liquid 100% get sterilization.
7.Simple structure, easy washing, convenient operation and low cost maintenance.
TECHNICAL PARAMETER:
Model | YGT-PS-1 |
Capacity | 100-10000kgs/h |
Power | 1.5kw |
Inlet temperature | 35C |
Sterilizing temperature | 120C |
Sterilizing time | 30S |
Outlet temperature | 65C |
Cooling water | 25C |
————————————
Divided by structure:
1. Plate structure
2. Tubular structure
Divided by temperature:
1. Pasteurizer below 95 degrees. (pasteurization)
2. UHT ultra-high temperature is around 120-140 degrees.
Pasteurization is mainly realized by plate structure. More tubular structures are used in UHT.
Application of sterilizer:
- Dairy products (fresh milk, yogurt, ice cream, eggs, etc.), including milk/goat's/camel's/vegetable milk - coconut milk/walnut milk/almond milk/soybean milk, etc
- Fruit juice drinks (orange juice, pineapple juice, mango juice, tea drinks and other fruits and vegetables)
- Jam dressing (tomato sauce, mayonnaise, chili sauce and other thick materials)
Beer, yellow rice wine, etc
YGT sterilization is mainly used in the material sterilization before packaging, some beverage production line after sterilization filling also need after sterilization machine, is another structure, water bath, spray, pour bottle. According to the different material selection, the later design production line in the specific configuration.
Sterilization unit into: college 1. Heat source: steam valve group/electric heating (generally is steam valve group structure, abortion can not consider electric structure) under the condition of boiler
2. Hot water: hot water tank, hot water pump, plate and sheet heat exchanger (tubular heat exchanger for new process improves service life)
Cold parts: connect to external devices provide cooling water or ice water college 3. The material parts: material balance tank, material pump, / tube plate heat exchanger in hot pot
4. Control cabinet: flow chart, valve control on the pipeline, steam temperature control, pump start and stop
Sterilization machine capacity: 500L/H - 20,000 L /h
Common capacity: 1000 l/h, 2000 l/h, 3000 l/h, 5000 l/h, 8000 l/h 10000 l/h college
———
Item | Qty | Name | Technology Data | ||
Plate sterilizer ( 500l/h, 30⁰C--120⁰C sterilizing/8s—90 ⁰C ) | |||||
1 | 1 |
Plate sterilizer (electricity heating type) |
Design Capacity : 500L/h Heating area: 4m2 Pipe Pressure: 5.0Mpa Total Power: about 32kw Size: 2000x1800x2500mm, 1400kgs Material Inlet Temperature: 30℃ Material Heating Temperature: 120℃ Material Sterilizing Time: 8s Material Outlet Temperature:90℃ Cooling water Pressure: 0.3Mpa Cooling water Temperature: <2℃ Ice water consumption: 1500l/h Air compressor Pressure: 0.6Mpa Compressor air consumption: 0.1M3/min Structure: plate structure Material pipe: SUS304, φ25x 1.5mm Water pipe: SUS304 φ25x 1.5mm Steam pipe: φ25x 1.5mm Air compressor pipe: φ6x 1mm |
||
Composed by : | |||||
A |
Electricity system |
1 set | Automatic temperature control valve | 30kw | |
B | Hog water system | 1 set | Closed type water heater | Factory |
1 set | Multi-stage centrifugal pump:0.75kw-40m | NANFANG |
1 set | Closed type water tank: 10L | Factory |
1 set | Pneumatic back pressure valve | Factory |
C | Material system | 1 | Centrifugal pump: 3kw | QJ, LB1-10-50 |
1 | Material balance tank: 50L | Level control |
1 |
Material discharge valve: DIN19 Pneumatic stop/reversing valve |
AFLF/APV/ABO |
1 | Material level control(automatic) | Mechanical balance |
5 | Temperature sensor, PT100 | Denmark |
4 | Diaphragm pressure gauges | 0-16bar |
1 | Heat exchange plate | SUS304 |
D | Cooling system | 1 | Pneumatic Angle seat valve: DIN25 | For cold water in |
1 | Stop valve: DIN25 | For cold water out |
E | Control system | 1set |
PLC programmable controller Colorful touch screen : SIMENS or Omron No paper temperature record Electricity Element : Schneider Air filter: Airtac Solenoid valve: Airtac |
QJ design |
Item | Qty | Name | Technology Data | Note | |
UHT ( 3T/h, 30⁰C--65 ⁰C homogenizer-135⁰C sterilizing/5s—10 ⁰C ) | |||||
1 | 1 | UHT sterilizer |
Design Capacity : 3,000L/h Heating area: 50m2 Pipe Pressure: 5.0Mpa Total Power: about 10kw Size: 4500x2000x2700mm, 2300kgs Material Inlet Temperature: 30℃ Material Heating Temperature: 135℃ Material Sterilizing Time: 5s Material Outlet Temperature: 10℃ Cooling water Pressure: 0.3Mpa Cooling water Temperature: <2℃ Ice water consumption: 10T/h Air compressor Pressure: 0.6Mpa Compressor air consumption: 0.1M3/min Steam feeding Pressure: 0.6Mpa Steam working Pressure: 0.5Mpa Steam consumption: 180kgs/h Structure: tubular structure Material pipe: SUS304, φ38x 1.5mm Water pipe: SUS304 φ50.8x 1.5mm Steam pipe: φ50.8x 1.5mm Air compressor pipe: φ6x 1mm |
||
Composed by : | |||||
A |
Steam heating system |
1 set | Automatic steam temperature control valve | Spirax Sarco |
Or
1 set | Diaphragm type steam pressure reducing valve | Spirax Sarco |
1 set | Steam traps | Spirax Sarco |
1 set | Steam filter | Factory |
1 set | Steam blowdown valve | Factory |
B | Hog water system | 1 set | Closed type water heater | Factory |
1 set | Multi-stage centrifugal pump:2.2kw-40m | NANFANG |
1 set | Closed type water tank: 30L | Factory |
1 set | Pneumatic back pressure valve | Factory |
C | Material system | 1 | Centrifugal pump: 4kw | QJ, LB1-10-50 |
1 | Material balance tank: 80L | Level control |
1 | Material discharge valve, Material feeding valve, waste discharge vavle, | AFLF/APV/ABO-DIN38 |
1 | Material level control(automatic) | Mechanical balance |
5 | Temperature sensor, PT100 | Denmark |
4 | Diaphragm pressure gauges | 0-16bar |
1 | Heat exchange tubular | SUS304 |
D | Cooling system | 1 | Pneumatic Angle seat valve: DIN50 | For cold water in |
1 | Stop valve: DIN50 | For cold water out |
E | Control system | 1set |
PLC programmable controller Colorful touch screen : SIMENS or Omron No paper temperature record Electricity Element : Schneider Air filter: Airtac Solenoid valve: Airtac |
QJ design |
E | Control system | 1set |
PLC programmable controller Colorful touch screen : SIMENS or Omron No paper temperature record Electricity Element : Schneider Air filter: Airtac Solenoid valve: Airtac |
QJ design |
E | Control system | 1set |
PLC programmable controller Colorful touch screen : SIMENS or Omron No paper temperature record Electricity Element : Schneider Air filter: Airtac Solenoid valve: Airtac |
QJ design |
E | Control system | 1set |
PLC programmable controller Colorful touch screen : SIMENS or Omron No paper temperature record Electricity Element : Schneider Air filter: Airtac Solenoid valve: Airtac |
QJ design |
E | Control system | 1set |
PLC programmable controller Colorful touch screen : SIMENS or Omron No paper temperature record Electricity Element : Schneider Air filter: Airtac Solenoid valve: Airtac |
QJ design |
E | Control system | 1set |
PLC programmable controller Colorful touch screen : SIMENS or Omron No paper temperature record Electricity Element : Schneider Air filter: Airtac Solenoid valve: Airtac |
QJ design |
E | Control system | 1set |
PLC programmable controller Colorful touch screen : SIMENS or Omron No paper temperature record Electricity Element : Schneider Air filter: Airtac Solenoid valve: Airtac |
QJ design |
E | Control system | 1set |
PLC programmable controller Colorful touch screen : SIMENS or Omron No paper temperature record Electricity Element : Schneider Air filter: Airtac Solenoid valve: Airtac |
QJ design |
PROJECT TECHNICAL
• The unit is excellent to process liquid material, such as coconut milk, drink , fruit juice
• The product flows into a pressure pipe complete of heat exchange
• The final product is heated and cooled very fast and the processing temperatures are controlled by regulation PID of the capacity of the thermal exchange fluids.
• Sterilizer body is composed of:
- steam protect system(steam filter, relief valve, regulating valve, stop valve, steam trap, pressure gage,pipe flange, pressure pump etc);
- tubular heating centra unit(heating section, holding section, cooling section);
- PLC touch screen control system
- hot water generator
- holding tank, one for hot water, one for material;
- feeding pump, hot water pump, centrifugal material pump;
- support stainless steel frame,pipe and accessories
