Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line

Certification
China KUNSHAN YGT IMP.&EXP. CO.,LTD certification
China KUNSHAN YGT IMP.&EXP. CO.,LTD certification
Customer Reviews
I thank you very much for your intervention in this, once again you show me your professional and leadership conditions for me.

—— Ricardo Torres Girardi

the machine run well. that is good for starting small, and eventually grow big.

—— Emanueli ngowi airtl

It was a great pleasure to meet you today, and thank you for sparing time to visit us. exist equipment run well. Further to our meeting we wish to add one more equipment of the aseptic filling machine ,we also agreed to include a tubular pasteurizer complete with a chiller and boiler. We look forward to establish a lasting relationship .

—— Daniel

the spare parts is right to match the filling machine. thanks for your efficient work and quick response. Now clients is happy and start normal production. we keep in touch.

—— RONALD KYASIIMIRE

I'm Online Chat Now

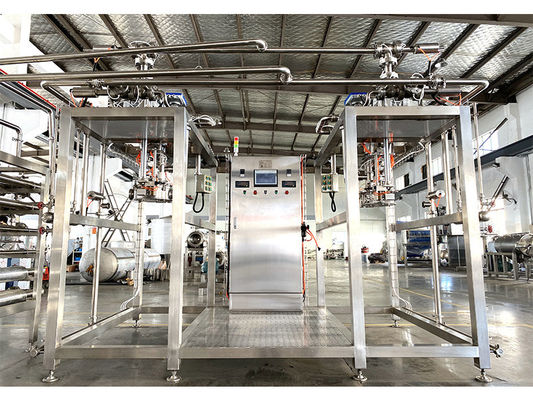

Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line

Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line
Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line
Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line

Large Image :  Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line

Product Details:
Place of Origin: China
Brand Name: YGT
Certification: CE
Model Number: YGT-PW-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Wooden box/Film packaging
Delivery Time: 20-40days
Payment Terms: T/T, L/C

Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line

Description
Product Name: Tomato Concentrated Juice Aseptic Bag In Box Filling Machines Application: Juicer Or Jam Production Line
Function: Fruit Vegetable Processing Brand: YGT
Place Of Origin: Shanghai,China Voltage: 380V 50HZ
Certification: CE Warranty: 1Year
Materical: SUS304 Capacity: 2000kg/h
High Light:

Juice Aseptic Bag In Box Filling Machines

,

Tomato Concentrated Aseptic Bag Filler

,

Jam Production Line Aseptic Bag Filler

Tomato Concentrated Juice Aseptic Bag In Box Filling Machines



Tomato Concentrated Juice Aseptic Bag In Box Filling Machines

The fruit pulp and juice process is mainly composed of washer, Sort conveyor, Elevator, Crusher and Preheater / De-stoner , Pulping & Refiner, Buffer tank & pump, Evaporation, Holding tank, Sterilizer,Aseptic filler and other processes. The fruit pulp and juice process is mainly used in tomatoes, mangoes, guava and other products



Specification

Raw material mango, tomato, guava
Final product mango puree/jam, tomato paste, guava concentrate
Capacity 2-25t/h
Juice yielding rate 45-55%(mango), 90-95%(tomato)
Soluble solid content (fresh juice) 14-16brix (mango ), 4-4.5brix(tomato ), >9brix(guava)
Soluble solid content (Final pulp) 14/28brix (mango ), 28-30/36-38brix(tomato ), >20brix (guava )
Consistency(Bostwick at 20℃) 6-12/3.5-10(mango), 4-8(tomato),3.5-8(guava)
Final product package Aseptic bag220/1400L//BIB 25L// Can tin 400g/800g



Product Descripyion

Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line 0

























































































Process Flow

Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line 1

(1) Washer——first pass the original fruit through the washing machine for cleaning.
(2) Sort conveyor——the cleaned raw fruit is selected by the elevator, and the bad raw fruit is picked out and removed
(3) Juicing and beating —— the fruit is peeled and cored to squeeze the juice. There are many types of juicers, which can be selected according to the types of fruits and vegetables. Fruits need to be crushed or pre-cooked before juicing, which can increase the juice extraction rate
(4) Concentration —— Juice that has been squeezed and pulped is transported to the concentration tank and evaporator for concentration through a transfer pump. The concentration tank and evaporator should also be selected according to the output and product environment requirements.
(5) Holding Tank —— Transport the concentrated jam juice to the storage tank through a transfer pump for the next process

(6) Sterilizer——the jam juice in the storage tank is delivered to the sterilization machine or sterilization pipeline through the transfer pump for sterilization.

(7)  Aseptic filler ——Finally, the product is filled through the filling machine. The choice of the filling machine depends on the form of the filled container, such as the filling of aseptic bags, glass bottles and other containers.



Company Profile

Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line 2

Tomato Concentrated Juice Aseptic Bag In Box Filling Machines.

Our company mainly work for aseptic filler, sterilizer, juice extractor etc fruit processing equipment, all our engineer team work in this process industry with 12 years experience, except single key machine, we could also provide turnkey project solution. We have cooperated with many well-known dairy and beverage processing factories, such as China's Guangming Dairy, Mengniu, Yili, etc.

Our Service
Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line 3
Service for Tomato Concentrated Juice Aseptic Bag In Box Filling Machines.
(1) Reply in 24 hours
(2) Providing professional solutions
(3) Every product will be tested before the delivery
(4) Delivery on time and excellent after-sale service
(5) High quality, reliable price

Certification
Tomato Concentrated Juice Aseptic Bag Filler for Jam Production Line 4

FAQ
1. Who are we?
We are based in Shanghai, China, start from 2006,sell to Mid East(15.00%),Eastern Asia(15.00%),Western Europe(12.00%),North America(10.00%),Africa(10.00%),Southeast Asia(10.00%),Northern Europe(6.00%),South America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South Asia(4.00%),Southern Europe(3.00%). There are total about 51-100 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
sterilization machine,pasteurizer machine,heat exchange,CIP system,filling machine

4. Why should you buy from us not from other suppliers?
1. update the technology every year, and with many sole patent 2. choose top international brand for as material and part, to guarantee equipment steady 3. long term available for spare parts like sealing and gasket

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese,German,French,Korean,Italian
