Product Details:
|
| Product Name: | 2021 Multifunctional Tubular Uht Pasteurizer For Pineapple Juice | Brand: | YGT |
|---|---|---|---|
| Application: | Milk/juice | Sterilizing Way: | Steam Sterilization |
| Material: | SUS304 | MOQ: | 1set |
| Payment Method: | L/C,T/T | Place Of Origin: | China |
| Power: | 6-10kw | Size: | 2.0*1.8*2.0(m) |
| Highlight: | Steam Sterilization Uht Pasteurizer,Pineapple Juice Uht Pasteurizer,Pineapple Juice UHT Sterilization Machine |
||

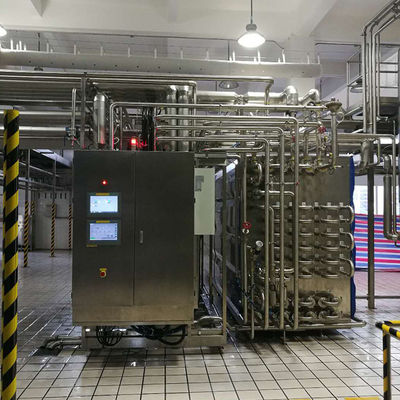

2021 Multifunctional Tubular Uht Pasteurizer For Pineapple Juice
Product Descripyion
UHT Sterilizer machine is the food industry must have sterilization equipment. UHT sterilizer machine that kills microorganisms on products, packaging containers, packaging materials, packaging accessories, and packaging parts in time to reduce them to the permissible range. UHT sterilize machine used for continuous sterilization of fruit and vegetable pulp, raw juice, concentrated juice, milk, juice beverage ,water or similar products.
UHT sterilizer machine
UHT sterilizer machine consists of three parts: regeneration, heating and cooling, and plate and pipe sterilization can be combined in a variety of forms, with two separate heating and cooling parts for online homogenization. The sterilizer temperature of the UHT sterilizer machine can reach 150℃. All parts of the UHT sterilizer machine in contact with the product are made of 316 stainless steel, the plate gaskets and seals are made of food grade fluoroelastomer, and the product pipeline connections are made of DIN sanitary fittings. In the display output, the UHT sterilizer machine is equipped with touch screen, PLC program control, the temperature, flow and other parameters of the product dynamic reflection, and can choose pressure gauge or digital sensor according to the user's requirements.Therefore, the UHT sterilizer machine can meet most industrial production conditions
Plate pasteurizer working principle
The UHT sterilizer process is under high-precision temperature control system. When the cold drinks are filled into the heat exchanger, they receive heat from the sterilized hot drinks. Then, they will be heated up to around 135-150℃ by superheated steam and water. Next, they will be kept in the constant warm tube for UHT sterilization. When they come out from the constant warm tube, they transfer heat to the incoming cold drinks, and cool down in the cooling part before they reach the outlet.
Technology Data
| UHT Sterilizer Machine | |||||||||
| Main technical parameters | |||||||||
| Type |
Capacity (t/h) |
Steam consumption (kg/h) |
Steam pressure (kg) |
Power (kw) |
Dimension l*h*d(m) |
Weight (kg) |
Diameter(mm) | ||
| material | steam | medium | |||||||
| YGT0.25C-GZ-5MJ | 5 | 430 | 4.0 | 3.7 | 2.0*1.6*2.0 | 1120 | 38 | DN50 | 38 |
| YGT0.25C-GZ-15MJ | 15 | 1290 | 4.0 | 7.0 | 2.5*2.5*2.2 | 2020 | 63 | DN80 | 63 |
| YGT0.25C-GZ-20MJ | 20 | 1720 | 4.0 | 8.0 | 2.5*2.5*2.2 | 2220 | 63 | DN80 | 63 |
| YGT0.25C-GZ-30MJ | 30 | 2580 | 4.0 | 11.0 | 2.5*2.5*2.2 | 2720 | 76 | DN100 | 76 |
| YGT0.25C-GZ-50MJ | 50 | 4300 | 4.0 | 11.0 | 2.5*2.5*2.5 | 3500 | 101 | DN125 | 101 |
| Process: 35℃→135℃(4s)→40℃ (as per request) | |||||||||
UHT sterilizer machine performance features
