Product Details:
|
| Product Name: | SUS304 1-3T/Hr UHT Tubular Sterilizer For Condensed Jam | Brand: | YGT |
|---|---|---|---|
| Application: | Milk/juice/jam | Sterilizing Way: | Steam Sterilization |
| Material: | SUS304/SUS316 | MOQ: | 1set |
| Payment Method: | L/C,T/T | Place Of Origin: | China |
| Power: | 8-11kw | Size: | 2500 X 2500 X 2200(cm) |
| Highlight: | Condensed Jam UHT Sterilization Machine,UHT Tubular Sterilizer,SUS304 Tubular Sterilizer |
||

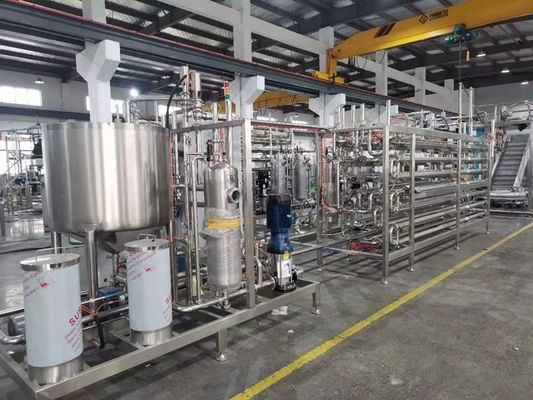

SUS304 1-3T/Hr Capacity UHT Tubular Sterilizer For Condensed Jam
SUS304 1-3T/Hr UHT Tubular Sterilizer For condensed jam
UHT Sterilizer Machine
Tubular UHT sterilizers are widely used in fully automatic systems for"sterile"and "non-sterile"heat treatment of liquid foods.The product has a wide range of viscosities and can adapt to fibers and particles.and the control components are all international famous brand products, including PLC program controller and industrial control panel, steam pressure reducing and requlating valve, diverter valve, pressure requlator valve, material pump, hot water pump.
Product Descripyion
UHT Sterilizer machine is the food industry must have sterilization equipment. UHT sterilizer machine that kills microorganisms on products, packaging containers, packaging materials, packaging accessories, and packaging parts in time to reduce them to the permissible range. UHT sterilize machine used for continuous sterilization of fruit and vegetable pulp, raw juice, concentrated juice, milk, juice beverage ,water or similar products.
Plate pasteurizer working principle
The UHT sterilizer process is under high-precision temperature control system. When the cold drinks are filled into the heat exchanger, they receive heat from the sterilized hot drinks. Then, they will be heated up to around 135-150℃ by superheated steam and water. Next, they will be kept in the constant warm tube for UHT sterilization. When they come out from the constant warm tube, they transfer heat to the incoming cold drinks, and cool down in the cooling part before they reach the outlet.
Technology Data
| UHT Sterilizer Machine | |||||||||
| Main technical parameters | |||||||||
| Type |
Capacity (t/h) |
Steam consumption (kg/h) |
Steam pressure (kg) |
Power (kw) |
Dimension l*h*d(m) |
Weight (kg) |
Diameter(mm) | ||
| material | steam | medium | |||||||
| YGT0.25C-GZ-5MJ | 5 | 430 | 4.0 | 3.7 | 2.0*1.6*2.0 | 1120 | 38 | DN50 | 38 |
| YGT0.25C-GZ-15MJ | 15 | 1290 | 4.0 | 7.0 | 2.5*2.5*2.2 | 2020 | 63 | DN80 | 63 |
| YGT0.25C-GZ-20MJ | 20 | 1720 | 4.0 | 8.0 | 2.5*2.5*2.2 | 2220 | 63 | DN80 | 63 |
| YGT0.25C-GZ-30MJ | 30 | 2580 | 4.0 | 11.0 | 2.5*2.5*2.2 | 2720 | 76 | DN100 | 76 |
| YGT0.25C-GZ-50MJ | 50 | 4300 | 4.0 | 11.0 | 2.5*2.5*2.5 | 3500 | 101 | DN125 | 101 |
| Process: 35℃→135℃(4s)→40℃ (as per request) | |||||||||
UHT sterilizer machine performance features
