|Product Name:||2-3T/H SUS316 380V 50Hz Laoganma Chili Sauce Processing Line||Application:||Chili Sauce|
|Function:||Fruit Vegetable Processing||Brand:||YGT|
|Place Of Origin:||Shanghai,China||Voltage:||380V 50HZ|
3T/H Chili Sauce Production Line,
Laoganma Chili Sauce Production Line,
380V 50Hz Chili Sauce Production Line
2-3T/H SUS316 380V 50Hz Laoganma Chili Sauce Processing Line
In the fermentation process, the hot sauce will be fermented for 10 days at 25℃, Chili hot pepper powder:
Fresh chili will be sundry, then air washing, sorting, crushing and grinding,
then use the belt dryer to make the ground chili into the chili powder.
The chili powder can be filled into jars or pouches.
TECHNICAL DATA SHEET
|APPLICATION||Chili Sauce Processing|
|RAW MATERIAL||Dry chili,Pepper,Oil,Garlic,Ginger|
|PACKAGE TYPE||glass bottle/PET bottle/Tin can/Four-side sealing small bag|
Chili sauce is a sauce made from chili peppers and is a common condiment on the table. There are two kinds of oil and water. The oil system is made with sesame oil and chili peppers. The color is bright red, and there is a layer of sesame oil floating on it, which is easy to store.
The water system is made of water and pepper, with bright red color, adding garlic, ginger, sugar and salt, it can be preserved for a long time and the taste is more delicious.
1. Antipyretic and analgesic: Capsicum is pungent and warm, which can reduce body temperature through sweating and relieve muscle pain, so it has a strong antipyretic and analgesic effect.
2. Prevent cancer: Capsaicin, the active ingredient of pepper, is an antioxidant substance, which can prevent the metabolism of related cells, thereby ending the cancerous process of cell tissues and reducing the incidence of cancer cells.
3. Increase appetite and help digestion: The strong spicy flavor of pepper can stimulate the secretion of saliva and gastric juice, increase appetite, promote intestinal peristalsis, and help digestion.
4. Lipid-lowering and weight loss: Capsaicin contained in peppers can promote fat metabolism, prevent the accumulation of fat in the body, and is conducive to lipid-lowering, weight loss and disease prevention.
The bubble washing machine is installed with a water circulation pump and bubble generators. The materials are washed and pushed forward by rolling water. This machines perfectly imitates manual washing, which washes materials at least hurt level.

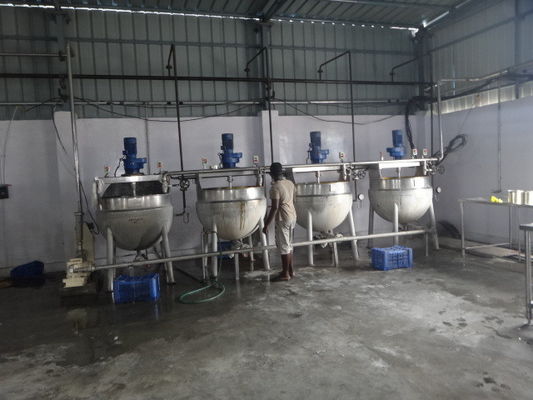

Jacketed pot is also known as steam pot, cooking pot, and jacketed steam pot. Jacketed pans are widely used in the pharmaceutical and food processing industries. Jacketed pots are mainly divided into: fixed jacketed pots/tiltable jacketed pots and stirred jacketed pots according to process requirements. Functional parts are added or removed according to process requirements. Product customization is relatively strong. The pot body of the jacketed pot is a double-layer structure composed of an inner and outer spherical pot body, and the middle jacket is heated by steam. The jacketed boiler uses a certain pressure of steam as the heat source (electric heating can also be used). The jacketed boiler has the characteristics of large heating area, high thermal efficiency, uniform heating, short liquid boiling time, and easy control of heating temperature.
The blending process is the core process of tomato ketchup seasoning processing, as after mixing, we obtained a semi-automatic ketchup product.Hybrid process is also a thermal mixing process and can improve production efficiency.The temperature was controlled at about 6O-65℃ and the mixing time at about 15 – 30 minutes according to the composition.
The mixing pool is mixed by three layers of SUS304/316 material 2B plates and a paddle mixer at a mixing speed of 0-65rpm.It is the ideal device for mixing diluted tomato concentrate, sugar and other ingredients into ketchup.The tank is equipped with material inlet, outlet, PT100 thermometer, steam valve set, liquid level sensor, CIP cleaning ball, sanitary valve, etc.
Chili sauce filling machine
After homogenized and pasteurized ketchup can be packed in four-sided sealed bags, tin cans, PET or glass bottles and self-reliance bags according to customer needs to match suitable filling equipment according to different packaging methods.
Water bath sterilization / spray cooling
The final product needs to be secondary pasteurized to better extend the shelf life.There are two kinds of secondary sterilization equipment, and we can choose according to the different packaging methods of the finished product.For tin cans or bottled tomato ketchup we use spray pasteurization, cooling channels spray hot water on the finished surface, then use cooling water to room temperature; for dose packs or self-reliance bags we use a water bath pasteurized .Soak dose packs or self-reliance bags in hot water for pasteurization, then cool with cold water, and finally blow off the droplets on the bag surface with compressor air.The secondary sterilization process was to preheat with 95℃ of hot water, then precooled with warm water to 65℃, and finally cooled to room temperature.The whole process takes about 40-60 minutes.
