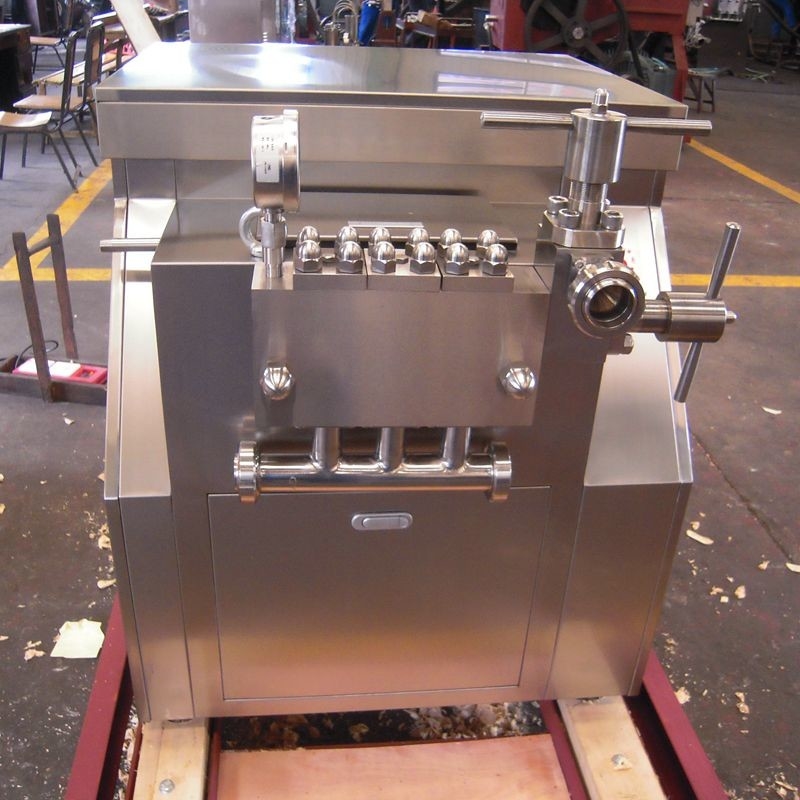

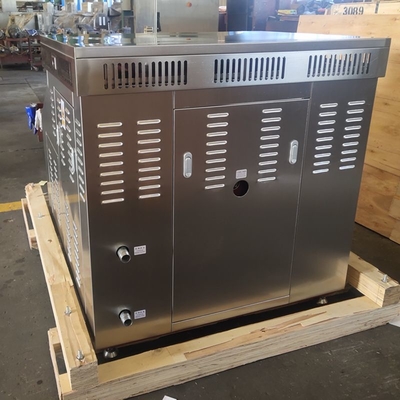

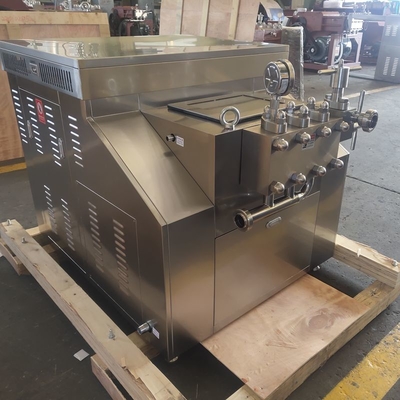

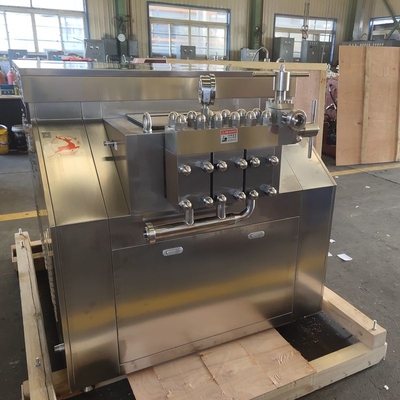

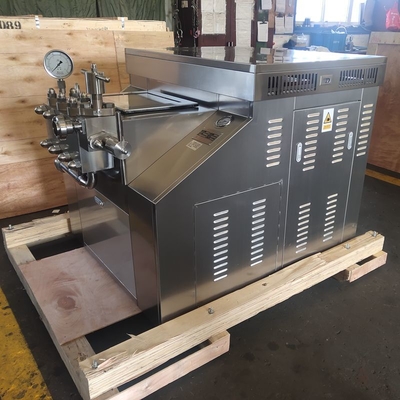

Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW

Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW
Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW

Large Image :  Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW

Product Details:
Place of Origin: China
Brand Name: YGT
Certification: CE/COC
Model Number: YGT-JZJ-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiate
Packaging Details: Wooden box/Film packaging
Delivery Time: 40days
Payment Terms: T/T, L/C

Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW

Description
Product Name: Homogenizer For Beverage Application: Juicer Or Jam Production Line
Function: Fruit Vegetable Processing Brand: YGT
Place Of Origin: Shanghai,China Voltage: 380V 50HZ
Certification: CE Warranty: 1Year
Materical: SUS304 Capacity: 1000L/h
High Light:

Adjustable Speed High Shear Homogenizer

,

Experimental High Shear Homogenizer

SUS304 High Shear, Adjustable Speed Experimental Homogenizer 1000L/H 25KW

SUS304 High Shear, Adjustable Speed

Experimental Homogenizer 1000L/H 25KW





How to buy:
1. Minimum trial amount: the smaller the better, which can save materials. The raw materials of some medicines reach several thousand yuan/g. Of course, users hope that a homogenization experiment can be completed with the least amount of materials. Moreover, the experiment is a repeated process, the larger the minimum sample size, the more material wasted.
2. Homogeneous pressure: It is not that the higher the pressure, the better. For general materials, first of all: in a sense, the higher the pressure, the smaller the particle size of the material can be processed; secondly, the higher the pressure, the more types of materials that can be processed, for example, some liquids Emulsions only need to be homogenized to below 100 nm at 15,000 psi, while some medicines, foods, especially suspensions with a certain amount of solid particles in liquids, require at least 26,000 psi to achieve nano-scale. However, it is not excluded that some materials coagulate under high pressure.
3. Processing effect: of course, the user wants to make the material, one is that it can reach the level of nanometers, and the other is that the distribution of nanometers is very uniform, not some particles are already dozens of nanometers, and some are still micron scale.
In order to solve this problem, it is recommended that when purchasing a homogenizer, the user should ask the manufacturer to equip it with a nano-scale filter extruder device, preferably an online extruder, which is very troublesome to extrude offline.
4. Cleaning and sterilization: The imported high-pressure homogenizer is very convenient for cleaning and sterilization. It is recommended to consider online cleaning and sterilization.
5. It is no longer necessary to consider the noise, safety, and the number of users in China of a device. From the user list, you can determine whether a device is selling well. The more well-known users, the better the quality of the device.
6. Manufacturers of homogenizers generally say that their equipment is very good. It is recommended that they first provide a list of users, and second, let them provide relevant results, papers, etc.
Through the inspection of the above aspects, we can compare many aspects of the high-pressure homogenizer equipment, so as to decide which equipment you need the most.



Homogenizer Features:



Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW 0



TECHNICAL DATA SHEET



Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW 1Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW 2

Driving assembly House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron.
Plunger the 4th generation stainless alloy(PH-type)
Check valve the 4th generation stainless alloy (GrMoFr), abrade-resisting and impact-resisting
Pump block stainless steel
Plunger sealing X4310 and PP spacer with heat-proof reaching 100℃
Homogenizing valve the 3rd special stainless alloy
Size 1.3*1.0*1.1m
Weight 1500kg
Voltage 380V 50Hz



Equipment Description:

The machine is made up of the foundation, motor, gearbox, high pressure pump and
homogenizing component etc..
Main applications:
(1) cell disruption, process new products, or harvesting the intracellular products;
(2) subdividing the particles or droplets present in fluids into very smallest sizes ( submicron ) and creating a stable dispersions and emulsions;
(3) homogenizing many other products;
Widely applied in fields of food, genetic engineering, chemical industry, pharmacy etc.



Working Principle:
when product is flowing through the adjustable valve ,the particles or droplets present in mixed
fluids with high pressure will be subdivided into the very smallest sizes (diameter Φ=0.1~0.2 um,
average Φ ≤1um ) because of pressure decrease, expansion, explosion, cutting and high-speed
impacting etc., then the emulsions or dispersions could be produced. This process refer to the
following Fig.
Through homogenizing the stability, easy-absorb, long-life, taste and color etc. of product could be
realized.



Package & Shipping

Experimental High Shear Homogenizer Adjustable Speed 1000L/H SUS304 25KW 3

We have long-term cooperation with many professional freight companies and shipping companies.

Our workers also have a lot of shipping experience. Before the product is shipped, the installation and layout will be discussed strictly according to the size of the equipment to ensure that the space of the container can be fully utilized under the premise of ensuring the safety of the equipment.
After the goods are loaded into the truck, we also use special freight straps to fix the equipment in the container to avoid the wear and tear caused by the collision of the equipment during transportation.
