Product Details:
|
| Material: | SUS304/SUS316 | Ussage: | Fresh Milk, Thick Juice, Ice Cream, Fresh Milk, Seasoning |
|---|---|---|---|
| Effeciency: | High Effeciency | Sterilization Temperature: | 5-140 |
| Control Type: | Automatic | Sterilization Ways: | High Temperature |
| Keyword: | UHT Sterilizer Machine | Warranty: | 1 Year |
| High Light: | Automatic UHT Sterilizer Machine,Milk UHT Sterilizer Machine,Auto UHT Sterilization Machine |
||
Pasteurizer Machine Sterilizer UHT Machine For Juice/Milk
FEATURES AT A GLANCE
UHT sterilizer advantage
Product Overview

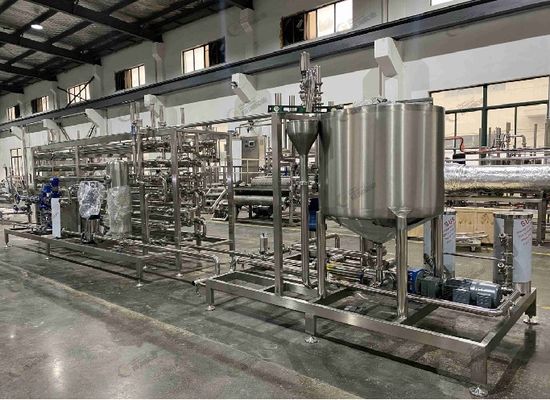

This UHT tubular sterilizer is based on tubular heat exchanger. It is suited for dairy, tea drink, fruit juice , milk , beverage
and other liquid products and can be used to mate with kinds of filing machines .
| No | Item | Data | Data | Data |
| 1 | Capacity | 1000lph | 3000lph | 8000lph |
| 2 | Power | 5.5kw | 8.5kw | 12.5kw |
| 3 | Steam consumption | 80kgs/h | 120kgs/h | 180kgs/h |
| 4 | Cooling water consumption | 3000lph | 9000lph | 24000lph |
| 5 | Steam pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| 6 | Compressed air consumption | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| 7 | Material | SUS316L | SUS316L | SUS316L |
| 8 | Size(mm) | 4500×2000×2700 | 4500x2200x2700 | 5000x2200x2700 |
