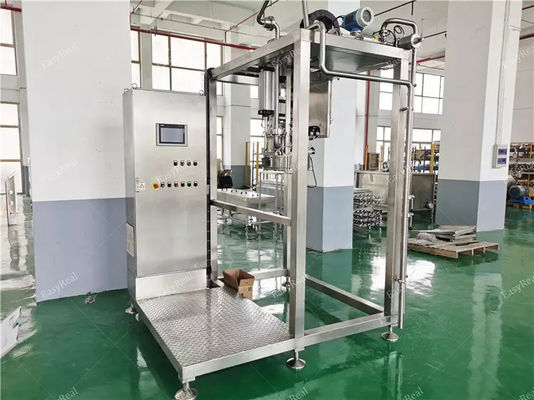

3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag

3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag
3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag
3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag

Large Image :  3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag

Product Details:
Place of Origin: shanghai
Brand Name: QJ
Payment & Shipping Terms:
Minimum Order Quantity: ≧1
Price: FOB$20000-200000/unit
Packaging Details: International standard package or your request
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 1-10units/40days
Contact Now

3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag

Description
Material: SUS304 Dimension(L*W*H):: 2000*1700*2800mm
Warranty:: 1 Year Machinery Capacity: Customized
Filling Material: Beer, Milk, Water, Juice Feature: Easy Operation
Key Selling Points: High Safety Level
Highlight:

3 Liter Aseptic Bag Filling Machine

,

220 Liter Aseptic Bag Filling Machine

,

3 Liter Aseptic Filling Systems

3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag In Box Drum Filler Aseptic Bag Filling Machine

Application:

The aseptic Filling Systems combined Italian technology and conform to Euro-standard, is a highly effective and reliable. aseptic method of bulk packaging for high and low-acid food products.

Widely used in aseptic packaging of tomato paste, jam, fruit juice, juice concentrate, vegetable juice, purees, pulp, concentrates, sauces, soups and dairy products.

The natural fruit, juice or pulp can be kept more than one year under constant temperature, the concentrated fruit juice or paste can be kept more than two years.
3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 0
No.
Used for
1
Juice & Concentrate
2
Pulp , Puree & Concentrate
3
Concentrate
4
Dairy & Cream
5
Other Liquid Product, etc.

No.
End Product Package
1
200L, 220L---Aseptic Bag
2
1L, 3L, 10L,25L---Aseptic Bag
3
1000L, 1400L---Ton-bin Bag

Description of Process:

The aseptic filling machine is connected with the Sterilizer directly; it will fill the products into aseptic bags after sterilizing. Actually, the aseptic filling system consists of the sterilizer and the aseptic filler. The product will be sterilized and cooled to the ambient temperature, then be conveyed to the aseptic filler by the connecting tubes.

The product will never be exposed in the air during the process and will be filled into the aseptic bags in the filling chamber of the filler that is protected by the steam. So, the whole process will be made in a closed and safety aseptic system.
3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 1

Technical Parameter :
Name
Single-head Filler
with Feeding-exiting Conveyor
Double-head Filler
with Feeding-exiting Conveyor
Double-head Filler
with Feeding-exiting Conveyor
(4 drums in 1 tray & Ton-bin)
Single-head Filler
with Feeding-exiting Conveyor
Single-head Filler
with Feeding-exiting Conveyor
Model
AF1S
AF2D
AF3D
AF5S
AF6D
Capacity
,t/h
1-5
5-10
5-12
1-1.5
1.5-3
Power
,Kw
1
1
1
1
1
Steam Consumption
,kg/h
0.4-0.8 Mpa
≈50
0.4-0.8 Mpa
≈100
0.4-0.8 Mpa
≈100
0.4-0.8 Mpa
≈50
0.4-0.8 Mpa
≈100
Air Consumption
,m³/h
0.6-0.8 Mpa
≈0.04
0.6-0.8 Mpa
≈0.06
0.6-0.8 Mpa
≈0.06
0.6-0.8 Mpa
≈0.04
0.6-0.8 Mpa
≈0.06
Bag Size
,Liter
220
220
220, 1400
1 - 25
1 - 25
Bag Mouth Size
1"
Metering Method
Weighing Sensor or Flow Meter
Flow Meter
Metering Error
Flow Meter:±0.2%~±0.5%, Weighing Sensor: ±1%
Dimension
,mm
1700*2000*2800
3300*2200*2800
4400*2700*3500
1700*1200*2800
1700*1700*2800
More Details
Aseptic Bag Filling System Mainly composed of Aseptic Filling Head, Metering System, Operation Platform, Siemens Control System, etc.
3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 2


1. Aseptic Head

Totally Made by SUS304 or SUS316.
Adopted Italian Design Technology and Confirm to Euro-standard.




2. Finished Parts

The aseptic Head is Assembled from finished parts.
3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 3
3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 4
3.PLC Control Cabinet


1. High degree of automation, minimize the number of operators on the production line.

2. All electrical components are international first-class top brands..

3. Adopted linkage control to automatically and intelligently respond to possible emergencies.




4. Roller Conveyor

Totally made by SUS304 Stainless Steel.
3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 5
3 To 220 Liter Aseptic Bag Filling Machine For Fruit Juice Paste Pulp Bag 6
5. State-certified High-tech System
1). Mirror welding tech to ensure tidy and smooth welding line.
2). Siemens control system.
4). CIP and automatic SIP available.
3). Keep the filling chamber sterilized all the time.
5). Easily adjustable with simple change parts according to the aseptic bag volume and size.
