Egg Liquid White Sterilization Pasteurizer Machine SUS316

Egg Liquid White Sterilization Pasteurizer Machine SUS316
Egg Liquid White Sterilization Pasteurizer Machine SUS316
Egg Liquid White Sterilization Pasteurizer Machine SUS316 Egg Liquid White Sterilization Pasteurizer Machine SUS316 Egg Liquid White Sterilization Pasteurizer Machine SUS316 Egg Liquid White Sterilization Pasteurizer Machine SUS316

Large Image :  Egg Liquid White Sterilization Pasteurizer Machine SUS316

Product Details:
Place of Origin: China
Brand Name: YGT
Certification: CE
Model Number: YGT-TS-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Film packaging
Delivery Time: 45days
Payment Terms: L/C, T/T

Egg Liquid White Sterilization Pasteurizer Machine SUS316

Material: SUS316 Product Name: Egg Liquid Sterilization Pasteurizer Machine SUS316
Condition: New Place Of Origin: China
MOQ: 1 SET Warranty: 1 Year
Brand: YGT
High Light:

SUS316 Egg Pasteurization Machine


SUS316 Pasteurizer Machine


Egg Liquid Sterilization Machine

Egg Liquid,Egg White Pasteurizer Sterilization Machine SUS316

Egg liquid,egg white Pasteurizer SUS316

Tubular sterilizer machine
UHT applicable to heating, sterilization, heat preservation and cooling etc. technology requirements of fresh milk, fruit beverage and alcohol etc. heat sensitive liquids.

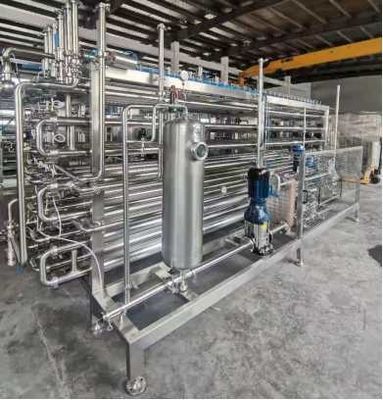

Egg Liquid White Sterilization Pasteurizer Machine SUS316 0

Product Descripyion
UHT Sterilizer machine is the food industry must have sterilization equipment. UHT sterilizer machine that kills microorganisms on products, packaging containers, packaging materials, packaging accessories, and packaging parts in time to reduce them to the permissible range. UHT sterilize machine used for continuous sterilization of fruit and vegetable pulp, raw juice, concentrated juice, milk, juice beverage ,water or similar products.


Plate pasteurizer working principle

The UHT sterilizer process is under high-precision temperature control system. When the cold drinks are filled into the heat exchanger, they receive heat from the sterilized hot drinks. Then, they will be heated up to around 135-150℃ by superheated steam and water. Next, they will be kept in the constant warm tube for UHT sterilization. When they come out from the constant warm tube, they transfer heat to the incoming cold drinks, and cool down in the cooling part before they reach the outlet.


Technology Data

UHT Sterilizer Machine
Main technical parameters



Steam consumption


Steam pressure








material steam medium
YGT0.25C-GZ-5MJ 5 430 4.0 3.7 2.0*1.6*2.0 1120 38 DN50 38
YGT0.25C-GZ-15MJ 15 1290 4.0 7.0 2.5*2.5*2.2 2020 63 DN80 63
YGT0.25C-GZ-20MJ 20 1720 4.0 8.0 2.5*2.5*2.2 2220 63 DN80 63
YGT0.25C-GZ-30MJ 30 2580 4.0 11.0 2.5*2.5*2.2 2720 76 DN100 76
YGT0.25C-GZ-50MJ 50 4300 4.0 11.0 2.5*2.5*2.5 3500 101 DN125 101
Process: 35℃→135℃(4s)→40℃ (as per request)




UHT sterilizer machine performance features

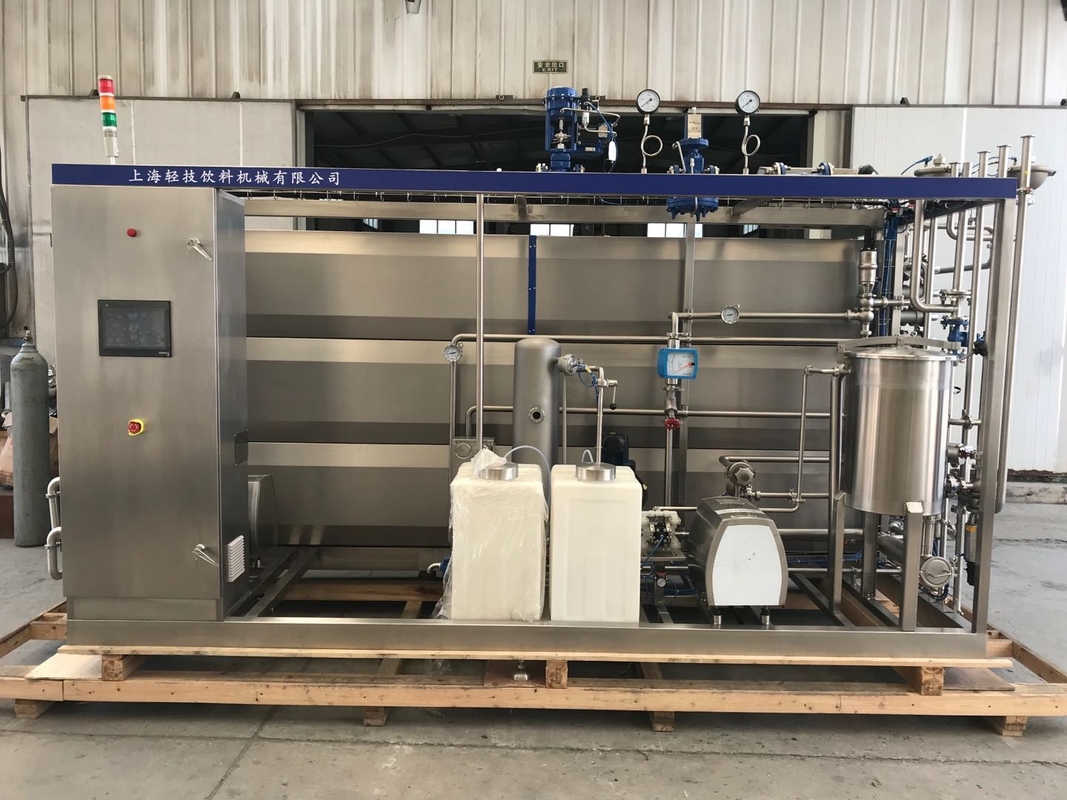

Egg Liquid White Sterilization Pasteurizer Machine SUS316 1

  • The product has a wide range of viscosity. The use environment pH value is 1 to 14.It is suitable for fresh milk, pasteurized milk,yogurt, color milk, fruit juice,tea beverage, wine,ice cream, soy milk,milk beverage, longevity milk,jam Aseptic production of products such as foods, sauces, etc.The products treated by the UHT sterilization system can be maintained at room temperature for 3 to 6 months (without the addition of any preservatives) under aseptic packaging conditions.

  • The equipment is fully or semi-automatic computer controlled, touch LCD operation.

  • Instant processing to maintain the original flavor of the product.

  • PID temperature control system, the sterilization temperature is continuously recorded on the recorder in real time.

  • The product heat treatment process is uniform, and the heat recovery rate is as high as 90%.

  • There is no contact point in the tube,no dead corners,the product will not stick to the tube, and the corrugated tube forms a high turbulence during the serilization process, and has a self-cleaning effect in the material flow process,so it is not easy to form scale and pollution in the tube.

  • Long continuous running time and better CIP self-cleaning effect.

  • Fewer spare parts and lower operating costs.

  • Easy installation, inspection and disassembly, convenient pipeline maintenance.

  • Reliable materialSUS304 or SUS316L, can withstand higher product pressure.

  • The temperature difference between the heating medium and the material is small, and gentle heating can be achieved.The heat exchange tubes adopt acombination of multiple tubes.Each tube adopts automatic polishing technology and automatic welding technology,There are no dents in the tube. This increase the continuous working time of the sterilizer.

  • High degree of automation,the entire process from CIPproces, SIP process and material sterization processcan be automatically controlled.

  • The sterilization temperature control is accurate and reliable: the steam valve is used to automatically adjust the temperature to maintain heat and pressure.

  • The system has strong security, and the system accessories are selected with good performance and high reliability. The system design attaches great importance to

    personnel, equipment safety, steam, hot water, materials, etc. have pressure protection measures and alarm systems
