Product Details:
|
| Product Name: | Yoghurt UHT Tubular Sterilization Machine Pasteurizer SUS304 Material | Brand: | YGT |
|---|---|---|---|
| Material: | SUS304 | MOQ: | 1 SET |
| Place Of Origin: | China | Power: | 6-10kw |
| Warranty: | 1 Year | Application: | Yogurt,milk |
| High Light: | UHT juice pasteurization machine,Ultra High Temperature UHT Sterilizer,yogurt uht pasteurization machine |
||
UHT Ultra High Temperature Instant Sterilization Pasteurization Fruit Juice Yogurt Sterilizer
Yoghurt UHT Tubular Sterilization Machine Pasteurizer SUS304 Material
Yogurt UHT Sterilizer Machine
Product Descripyion
UHT sterilizer adopt heat exchanger with coil structure. Short material heating time assure small nutrition loss of food. It is widely used in sterilization of fresh milk, sauce, beverege, wine, etc.

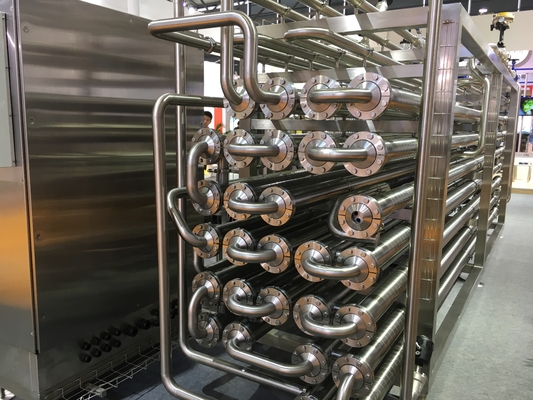

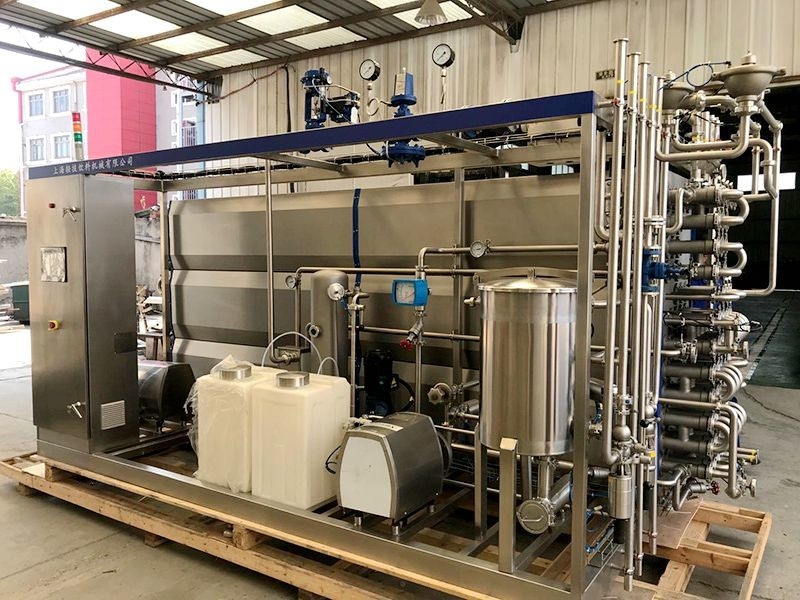

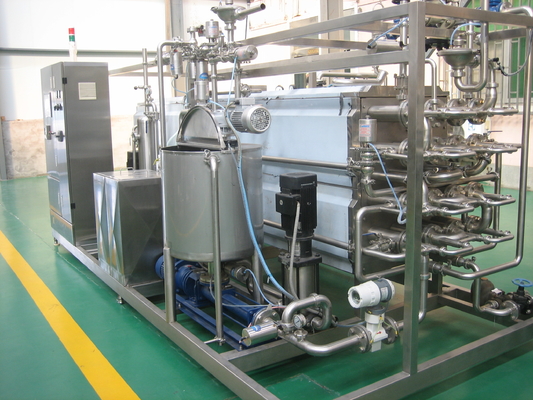

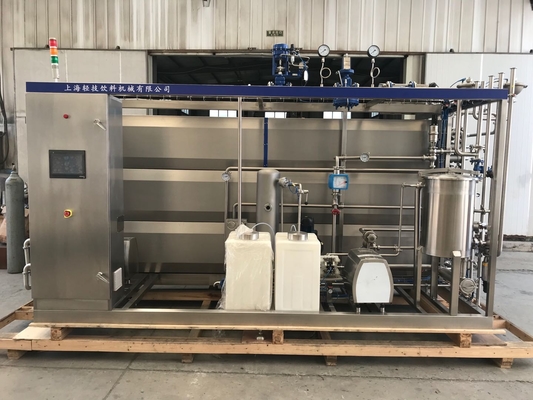

UHT sterilizer machine
UHT sterilizer machine consists of three parts: regeneration, heating and cooling, and plate and pipe sterilization can be combined in a variety of forms, with two separate heating and cooling parts for online homogenization. The sterilizer temperature of the UHT sterilizer machine can reach 150℃. All parts of the UHT sterilizer machine in contact with the product are made of 316 stainless steel, the plate gaskets and seals are made of food grade fluoroelastomer, and the product pipeline connections are made of DIN sanitary fittings. In the display output, the UHT sterilizer machine is equipped with touch screen, PLC program control, the temperature, flow and other parameters of the product dynamic reflection, and can choose pressure gauge or digital sensor according to the user's requirements.Therefore, the UHT sterilizer machine can meet most industrial production conditions
Plate pasteurizer working principle
The UHT sterilizer process is under high-precision temperature control system. When the cold drinks are filled into the heat exchanger, they receive heat from the sterilized hot drinks. Then, they will be heated up to around 135-150℃ by superheated steam and water. Next, they will be kept in the constant warm tube for UHT sterilization. When they come out from the constant warm tube, they transfer heat to the incoming cold drinks, and cool down in the cooling part before they reach the outlet.
Technology Data
| UHT Sterilizer Machine | |||||||||
| Main technical parameters | |||||||||
| Type |
Capacity (t/h) |
Steam consumption (kg/h) |
Steam pressure (kg) |
Power (kw) |
Dimension l*h*d(m) |
Weight (kg) |
Diameter(mm) | ||
| material | steam | medium | |||||||
| YGT0.25C-GZ-5MJ | 5 | 430 | 4.0 | 3.7 | 2.0*1.6*2.0 | 1120 | 38 | DN50 | 38 |
| YGT0.25C-GZ-15MJ | 15 | 1290 | 4.0 | 7.0 | 2.5*2.5*2.2 | 2020 | 63 | DN80 | 63 |
| YGT0.25C-GZ-20MJ | 20 | 1720 | 4.0 | 8.0 | 2.5*2.5*2.2 | 2220 | 63 | DN80 | 63 |
| YGT0.25C-GZ-30MJ | 30 | 2580 | 4.0 | 11.0 | 2.5*2.5*2.2 | 2720 | 76 | DN100 | 76 |
| YGT0.25C-GZ-50MJ | 50 | 4300 | 4.0 | 11.0 | 2.5*2.5*2.5 | 3500 | 101 | DN125 | 101 |
| Process: 35℃→135℃(4s)→40℃ (as per request) | |||||||||
UHT sterilizer machine performance features
