Laboratory Type Tubular And DSI Sterilizer Customized Suit For Juice Dairy Liquid

Large Image : Laboratory Type Tubular And DSI Sterilizer Customized Suit For Juice Dairy Liquid

Product Details:

Place of Origin:	China
Brand Name:	YGT
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	>>1
Price:	Negotiate
Packaging Details:	international package of your request
Delivery Time:	45days
Payment Terms:	L/C, T/T

Contact Now

Laboratory Type Tubular And DSI Sterilizer Customized Suit For Juice Dairy Liquid

Description

Weight:	200kg	Warranty:	1 Year
Moq:	1set	Capacity:	5-50L
Condition:	New	Type:	High Steam
Power:	23kw	Boiler Water:	Pure Water
Highlight:	DSI Sterilization Machine , Laboratory Type Tubular Sterilizer , Liquid Tubular Sterilizer

Introduction

Tubular & DSI ultra-high temperature sterilizer UHT

This sterilizer is a customized laboratory equipment that can perform ultra-high temperature instant sterilization, pasteurization and other processes on high-protein drinks, juices, dairy products, etc. Simulated, aseptic canned samples can achieve commercial sterility. This equipment can be combined with the previous homogenization and aseptic filling to form a miniature production line, which can achieve homogenization, ultra-high temperature instant sterilization, pasteurization, and no Bacteria filling can simulate the production of sterilized milk, cream, plant protein drinks, yogurt, juice, enzyme drinks, etc.

Device Description

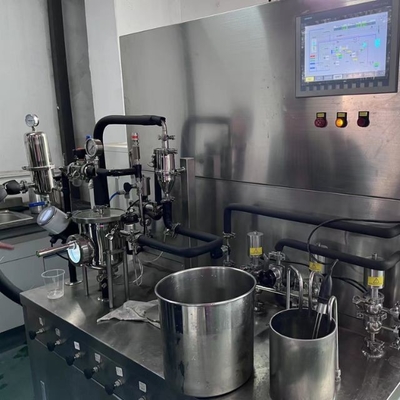

HP-DSI-30 steam injection sterilizer

DSI direct steam injection sterilizer has two heat treatment modes: direct heating (steam injection) and indirect heating (tube type). The highest sterilization temperature is Temperature can reach 150℃. The panel controls switching between two modes, which is convenient and fast. Direct steam heating means clean steam is directly injected into the preheated material. The indirect heat exchange mode is tubular heat exchange. This equipment is widely used in various fluid products, materials with a certain viscosity and materials containing fine particles. Materials etc.

Description

uD83CuDF1F The system has a built-in superheated water generator and can be equipped with an external ice water system according to customer requirements. Online homogenization and aseptic filling uD83CuDF1FThe equipment is compact in structure and self-contained system uD83CuDF1FPeripheral equipment only requires running water, electricity and compressed air uD83CuDF1FThe minimum feeding volume is 4-5 liters, shortening the experimental time uD83CuDF1FMicro, mobile laboratory, covering only 2-3 square meters uD83CuDF1FThe control panel provides centralized control and can be connected to a computer for control. Test data can be printed and online. Record, download, automatically generate curve analysis and save permanently uD83CuDF1FAutomatic control, high degree of automation uD83CuDF1FThe experimental data is accurate and reproducible, and can be directly scaled up to industrial production levels

Technical Parameters

uD83CuDF1FCapacity:30l/h

uD83CuDF1FPower:3 phase,380v,23kw

uD83CuDF1FBoiler water: pure water

uD83CuDF1FSterilizer temperature:150℃

uD83CuDF1FPressure:10.0bar

uD83CuDF1FSIP features:Experiments with dairy products and other must-have functions

uD83CuDF1FCIP function:Equipped with automatic CIP to save experimental time

uD83CuDF1FSize:1200*1000*1700

uD83CuDF1FOnline homogenization function:Optional APV, GEA, or domestic homogenizer (pre-homogenization/post-homogenization)

uD83CuDF1FOutput temperature:Adjustable, tap water cooling 30~90℃ (outlet pressure ≥2kg)

uD83CuDF1FIce water cooling temperature；10~12℃

Standalone DSI UHT Sterilizer

Design a separate DSI sterilizer, divided into four sections. The preheating section is preheated to 90°C through a tube, and the heating and sterilizing section uses direct heat exchange with steam to reach 145°C. degree, and then maintain steady sterilization. In the third stage, the temperature can be reached to 40-50°C through flash cooling. At the same time, the mixed water is heated by flash cooling steam. The fourth stage is cooled to below normal temperature through tube cooling00:00

Laboratory Type Tubular And DSI Sterilizer Customized Suit For Juice Dairy Liquid 3

00:45

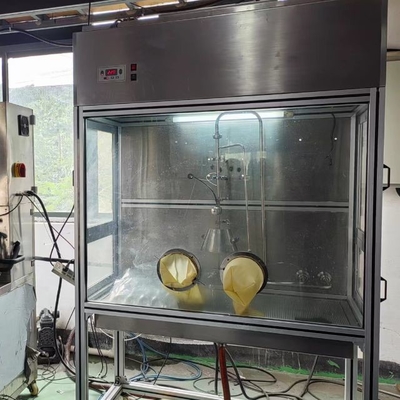

aseptic filling machine

This equipment is a vertical flow-shaped sterile operating table. It is an air purifier composed of a fan, primary effect, high-efficiency filter and ion generator. system. When working, the outside air is pre-filtered by the primary filter, and then sent to the high-efficiency filter by the fan, reaching a high level of air in the operating area. Purity (level 100), and finally sterilized by ultraviolet lamp and ion generator to form an ultra-clean and sterile state locally.

Filling capacity	50-120bottle/hour
Application	Milk.juice,tea,beer,etc
Average wind speed	≥0.4M/S
Cleanliness	filling area is level 100, which can be combined with ultra-high temperature sterilization for normal temperature aseptic filling.
High efficiency filter specifications	1175X510X50
Lighting power	20 W
UV lamp power	18 W
Fan power	140 W
Air volume	900-1400M3/H
Noise	<60db(A)
Power supply	220v,50hz
Material	sus304
Size	12255601850
