Product Details:
|
Production Name: | Tomato Sauce Uht Sterilizer | Material: | SUS304/316 |
---|---|---|---|
Capacity: | 500-20000l/h | Condition: | New |
Place Of Origin: | China | Control Type: | PLC+Touch Screen |
Consist: | Tubular Heat Exchange, Pump, PLC Etc | Warranty: | 1 Year |
Voltage: | 220V/380V/Customized | ||
Highlight: | Low Price Customization uht sterilizer,Tomato Sauce Processing Plant uht sterilizer,Tubular Heat Exchange uht sterilizer |
Download to learn more
tubular sterilizer production introduce.pdf
Click to learn more
https://www.youtube.com/watch?v=6MGcJ049e6o&list=PLMqO7-CTBpXtUf9nzvIHNa66uz3jZ9MOI&index=6

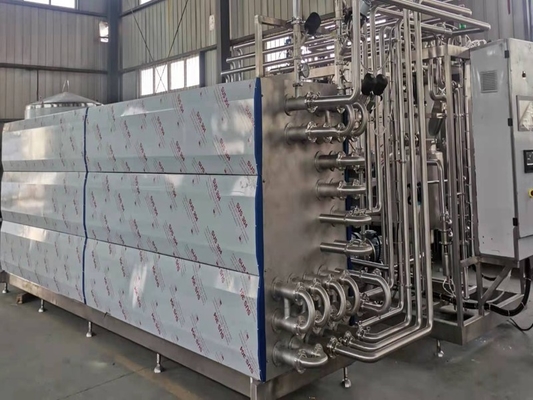

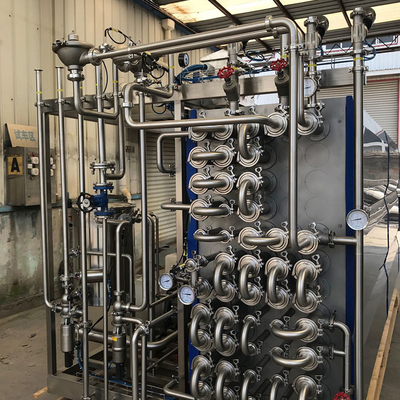

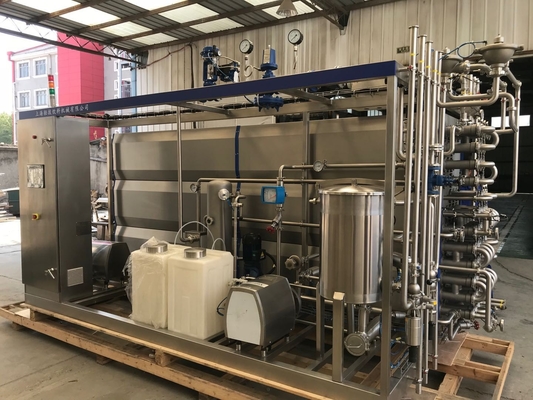

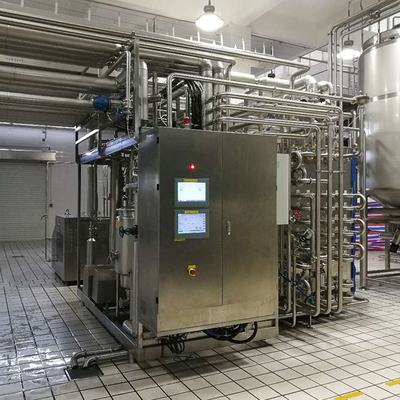

Tomato Sauce UHT sterilizer Overview:
Introducing our cost-effectiveTomato Sauce UHT sterilizer, designed for efficient tomato paste processing. This advanced sterilizer uses tubular heat exchange technology to deliver high performance sterilization at a competitive price. Tomato Sauce UHT sterilizer is designed for flexibility and reliability to meet the diverse needs of tomato paste processing plants, ensuring product safety, quality and extended shelf life while optimizing operating costs.
Tomato Sauce UHT sterilizer Main features:
Cost-effective customization:
Affordable solution: Tomato Sauce UHT sterilizer Designed to deliver high-quality sterilization at a lower price, making it ideal for budget-conscious operations.
Flexible customization: Tomato Sauce UHT sterilizer For specific production needs, a series of customization options are provided to meet various processing requirements.
Advanced ultra-high temperature sterilization technology:
Efficient processing: Ultra-high temperature (UHT) technology is used to quickly heat tomato paste, effectively killing microorganisms while retaining rich flavor and texture.
Uniform heating: ensure consistent and thorough sterilization of the entire production line.
Tubular heat exchange system:
High efficiency: Utilize tubular heat exchangers for efficient heat transfer, ensuring optimal temperature control and reducing energy consumption.
Durable Design: Withstands high temperatures and pressure, providing reliable performance and long service life.
High quality construction:
Materials: Made of durable stainless steel for corrosion resistance, easy maintenance and long-term reliability.
Rugged and Durable:Tomato Sauce UHT sterilizer Designed for continuous operation in harsh processing environments.
User-friendly operation:
Simple control: The control system is intuitive, simple to operate, and can be directly adjusted and monitored.
Real-time monitoring:Tomato Sauce UHT sterilizer Equipped with sensors that provide real-time data on temperature, pressure and processing conditions to ensure optimal performance.
Energy and cost efficiency:
Economical operation:Tomato Sauce UHT sterilizer Designed to optimize energy use and reduce operating costs while maintaining high sterilization performance.
Sustainability: Helping reduce environmental impact through efficient energy consumption and minimizing waste.
Hygienic and easy to maintain:
Hygienic design: Smooth surfaces and accessible components facilitate thorough cleaning and maintenance, ensuring a contamination-free processing environment.
Prevent contamination: Develop an effective sealing and cleaning program to maintain product safety.
Tomato Sauce UHT sterilizer typical application
Typical application | Mango pulp | Coconut water | UHT milk | Fruit juice |
Flow | 1000l/h | 3000l/h | 5000l/h | 8000l/h |
Power | 13 | 11 | 12 | 20 |
Temperature in | 40 | 4 | 4 | 55 |
Sterilizing temperature | 108 | 80/ 140 | 137 | 125 |
Holding time | 120 | 90 /8 | 5 | 15 |
Temperature out | 40 | 10/35 | 25 | 85 |
Note | The flow and temperature could tailor-made as per project demand from 500-20,000L/h |
Tomato Sauce UHT sterilizer application:
Low-cost custom UHT sterilizers are ideal for:
Tomato paste processing: Provide effective and efficient sterilization for tomato paste, ensure product safety and quality, and extend the shelf life.
Why choose us:
Value: Offers a cost-effective solution without compromising performance, making it a smart investment for tomato paste processing.
Experience: Extensive expertise in the design and manufacture of high performance UHT sterilization equipment.
Support: Dedicated customer support and after-sales service to ensure optimal operation and long-term satisfaction.
Innovation: Committed to providing customized solutions that integrate the latest technology to improve efficiency and quality.
