Product Details:
|
Name: | Multi-function Skin Separator | Material: | SUS304 |
---|---|---|---|
Function: | To Separate The Skin From Fruit | Application: | Pineapple ,citrus, Passion Fruit |
Highlight: | industrial juice extractor,fruit pulp extraction machine |

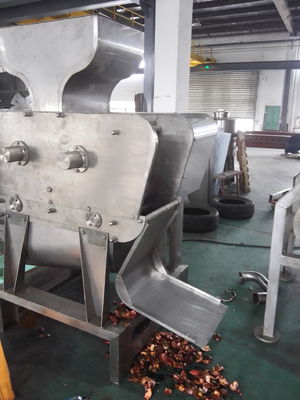

Multi-function skin separator,fruit peeler,fruit juice extractor,stainless steel
For kinds of fruit: (pineapple, passion fruit, guava, papaya, citrus, banana etc)
Equipment Description:
Multi- Skin Separator is able to process several variety of whole fruit of any size, such as: pineapples, passion fruit, guavas, aloe, melons, papayas,mangosteen and citrus. With good peeling function, and clear juice separation. Wide application and efficient production.
Multi- Skin Separator are very reliable because of their design and construction, they need low maintenance charges that guarantee them a very long lifetime.
Working Principle:
-A horizontal knife fixed between two counter rolling cylinders cuts the fruit into two halves. Then the half fruit is dragged by the rolling cylinders along the squeezing channels: here the juice comes out and is filtered through a perforated stainless steel sheet. The channels have different profiles according to the variety of fruit being processed.
-The squeezing pressure on fruit can be easily adjusted according to their assortments, ripening and the thickness of the peel, in order to get the maximum output of juice without compromising the quality.
-The peels are ejected exhausted by two proper stainless steel chutes and conveyed to the peel silo.
-The squeezing and conveying of juice is done in closed chambers in order to avoid the contact with air.
-The machine can be easily opened and disassembled for a complete sanitary washing.
Technical data | |
Material | SUS304 |
Application | for pineapple, citrus, passion fruit |
Required power | 5.5kw |
Capacity | 3-5 T/h. |
