|Name:||0.5-2T/H SUS304 Carrot Crusher Pulping Juicing Machine||Capacity:||0.5-2t/h|
|Usage:||Fruit And Vegetable Juice||Package:||Wooden Packages/ Membrane Packages|
Carrot Juice Crusher Machine,
SUS304 Juice Crusher Machine,
2TPH Food Processing Equipment

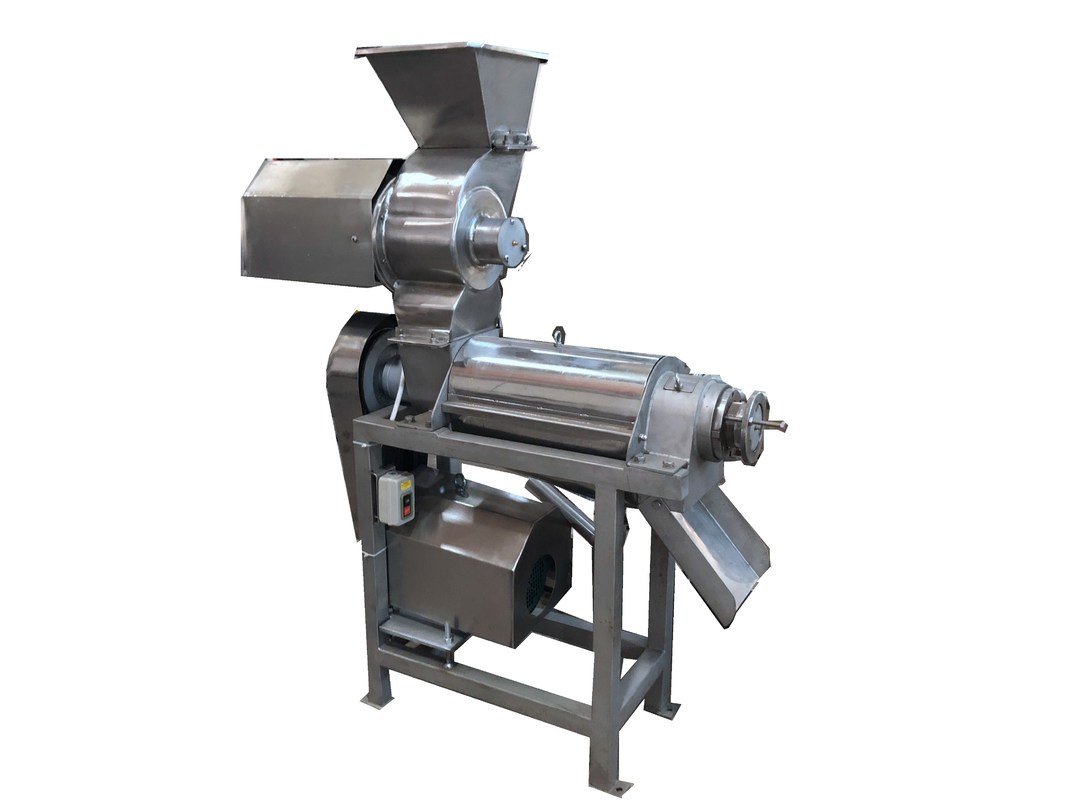

0.5-2T/H SUS304 Carrot Crusher Pulping Juicing Machine
Crusher Pulping Juicing Machine is a combination of crusher and juicer. Crusher Pulping Juicing Machineis mainly composed of feeding hopper, crushing parts, bracket, discharging hopper, transmission parts,etc. the materials of parts contacting materials are all food grade stainless steel.Widely used in all kinds of fruits and rootstock fruit crushing juice technology.
|Matched Power (kw)||7.7|
3. Feature and Advantage
Crusher Pulping Juicing Machine can automatically complete the processes of crushing and has the advantages of energy saving, low juice content of the filtering residue.
Crusher Pulping Juicing Machine is suitable for processing all kinds of berries, pome fruits and various vegetables, and is widely used to extract juice from apples, pears, carrots, pineapples, coconuts, aloes, cacti, etc.
5. More pictures
Production Process for 1.5t/H Pineapple Crusher and Juicing Machine
The main Crusher Pulping Juicing Machine of crusher consists of hammer, screen, main shaft, body and other parts. The whole Crusher Pulping Juicing Machine is composed of feeding hopper, crushing device,front support, screw,filter screen, juicer, rear support, slag chute and other components. The left end of the screw spindle is supported in the rolling bearing seat, the right end is supported in the handwheel bearing seat, and the motor drives the screw through the V-belt pulley for work. Working principle: the main component of the equipment is to install a crushing device on the feed hopper, and there are four groups of flying knives and a group of bottom knives on the rotor. The flying knives rotate around their own axes in the fixed bottom knife gap,so that the fruits and vegetables can be crushed with a particle size of 2-5mm, and directly enter the spiral juice extraction system, so as to improve the juice extraction effect. The main component of spiral juicing is screw.The screw diameter gradually increases along the direction of slag outlet and the screw pitch gradually decreases. When the material is pushed by screw, the volume of screw cavity shrinks,forming the pressing of the material.
1.5t/H Pineapple Crusher and Juicing Machine
