Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor

Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor
Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor
Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor

Large Image :  Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor

Product Details:
Place of Origin: China
Brand Name: YGT
Certification: ISO, CE, SGS
Model Number: DYJ
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: wooden package / Membrane package
Delivery Time: 20-40 work days
Payment Terms: L/C, T/T

Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor

Description
Name: Fruit Pulp Juicer Extractor Juice Making Machine Usage: Fruit And Vegetable Juice
Model: DYJ Material: SUS304
Motor Speed: 8r/min Linear Velocity Of Filter Belt: 5m/min
Highlight:

SUS304 Fruit Pulp Extractor

,

Belt Type Fruit Pulp Extractor

,

SUS304 Juice Extractor Machine

Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor





1. Descriptions for Belt Type Juicing Machine



Belt type juicing machine is carefully developed by our company in combination with the advanced belt type juicing machine abroad. Belt type juicing machine is widely used in juice extraction and environmental protection process of fruits and vegetables. The utility model has the advantages of energy saving, automatic feeding and discharging, continuous operation, full pressure filtration and extremely low juice content of the filtering residue.

The main part of belt type juicing machine is composed of frame, upper and lower drive shafts, deceleration drive assembly, filter press belt, filter press belt washing device, feed device component, distribution device, tension device, belt deviation correction device, pressurization device, slag scraping device, safety protection device, pneumatic and electrical control components, cleaning water filtering device,etc.

In addition to being widely used in food and beverage processing enterprises, Belt type juicing machine can also be used for pressure filtration and dehydration of powdery materials in chemical industry, environmental protection, light industry and other industries.



2. Specifications for Belt Type Juicing Machine



Model DYJ-3 DYJ-5 DYJ-10 DYJ-20
Production capacity(t/h) 1~3 3~5 10~12 20~22
Total power 20.38 21.18 22.25 41.37
Main drive moto speed(r/min) 8 8 8 5
Linear velocity of filter belt (m/min) 5 5 5 5
Feed feight(mm) 1900 1900 2000 1920
Outline size(mm) 3230×1600×2000 4000×2085×2505 5000×2880×2505 5420×3380×2050
Host power 2.2 3 4 5.5
Power of distributing roller 0.55 0.55 0.75 0.75
Compressed air Pressur (Mpa) 0.7 0.7 0.7 0.7
oxygen consumption (m³/h) 1 1 1 1
Wash water return pump Power (kw) 3 3 3 5.5
Flow (m³/h) 25 25 25 25
Lift (m) 20 20 20 20
Spray high pressure pump Power (kw) 15 15 15 15*2
Flow (m³/h) 16 16 16 16*2
Lift (m) 165 165 189 189



3. Feature and Advantage for Belt Type Juicing Machine



• Main structure made of SUS 304 stainless steel.

• Using Mirror welding tech to ensure tidy and smooth welding line.

• Advantages of energy saving



4. Usages for Belt Type Juicing Machine



Belt type juicing machine is widely used in juice extraction and environmental protection process of fruits and vegetables and Belt type juicing machine can also be used for pressure filtration and dehydration of powdery materials in chemical industry, environmental protection, light industry and other industries.



5. More Picture for Belt Type Juicing Machine

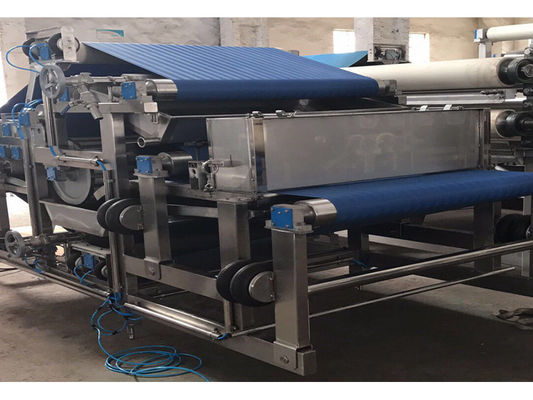

Belt Type Juicing 5T/H SUS304 Fruit Pulp Extractor 0

Production Process for Belt Type Juicing Machine

The refined raw materials (solid liquid mixture) are continuously pumped into the hopper by the progressing cavity pump (the bandwidth occupied by the material can be adjusted) and distributed evenly by the distributing roller. A large amount of water is slowly squeezed out of the lower wedge to form a squeezable filter cake, In the press area, a pressure roller with an "L" shaped strip presses out the water and ensures that the water flows out quickly on both sides. The diameter of the press roller at the back is decreasing, and the filter belt is in the shape of "S", which produces a shear force of decreasing surface pressure, which ensures the dehydration effect. To further increase the rate of dehydration, a pressure roller is added to generate linear pressure and peripheral pressure. After dehydration, the filter cake is scraped by wear-resistant scraper. The two filter belts are continuously washed by high-pressure nozzle, so that the filter belt can keep the effect of juice. Spray washing water through the reflux pump through the arc filter screen automatic filtration, slag discharge, recycling use, energy saving. The filter belt is made of nylon yarn warp and weft.



6. Service for Belt Type Juicing Machine



(1) Reply in 24 hours

(2) Providing professional solutions

(3) Every product will be tested before the delivery

(4) Delivery on time and excellent after-sale service

(5) High quality, reliable price



7. FAQ for Belt Type Juicing Machine



Q:  What’s your product name ?

A:  Fruit Pulp Juicer Extractor Juice Making Machine (mango plum orange etc)



Q:  Why should I choose your company?

A:  (1) 24hour/7day after sales service support ;

      (2) Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center;

      (3) Technical training for customers in our company factory or working site;

      (4) Every product will be tested before the delivery.

      (5) Delivery on time and excellent after-sales service.



Q:  How to solve the service after sale ?

A:  Solve any problem online . Supply you English manual book and technical support , maintain and install video to help you solve the problem.
