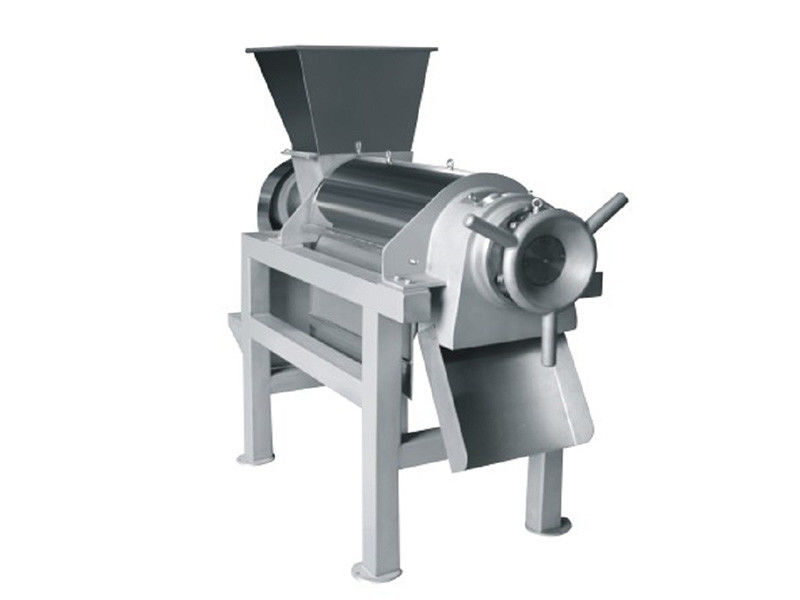

Upgraded Spiral Milk Coconut Juicing Machine 2-3T/H SUS304

2-3T/H SUS304 Upgraded Lait De Coconut Juicing Machine From Factory

Descriptions for Spiral Juice Extractor

The main part of the machine is the pressing screw. The bottom diameter of the pressing screw gradually increases along the direction of the slag outlet, and the screw pitch gradually decreases. When the material is pushed by the screw, the material is pressed because the volume of the screw cavity on the pressing screw reduces in turn. The rotation direction of the spiral spindle is clockwise from the feed hopper to the slag chute. When the material enters into the feed hopper, it is pressed under the push of the pressing screw, and the squeezed fruit and vegetable juice flows into the juicer at the bottom through the filter screen, while the fruit and vegetable residue is discharged through the gap formed between the pressing screw and the conical part of the pressure regulating head.Changing the size of the clearance can change the juice yield, but if the clearance is too small, under the strong extrusion of the pressing screw, some particles in the slag may be extruded together with the juice through the filter screen. Although the juice yield is increased, the quality of the juice is relatively decreased (pulp and pulp fiber in the juice are relatively increased).The size of slag clearance shall be determined according to the specific production process requirements of customers.

Specifications for Spiral Juice Extractor

Feature and Advantage for Spiral Juice Extractor
• The advantages of energy saving
• Continuous operation
• Full pressure filtration and extremely low juice content of the filtering residue.

Usages for Spiral Juice Extractor

Spiral Juicing Machine is mainly used for pressing and extracting of fruits and vegetables such as berries, nuts and rhizomes.

Spiral Juicing Machine can also be used for pressing and extracting of fruits and vegetables after de nucleation and softening.

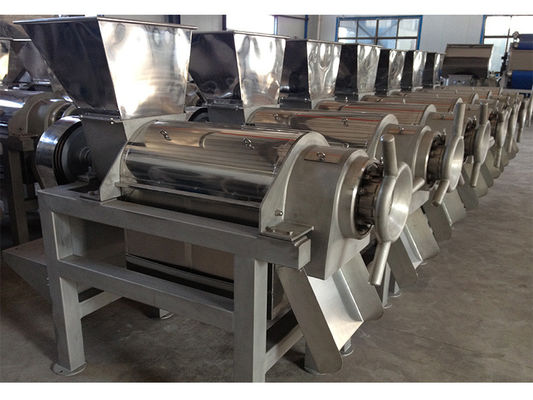

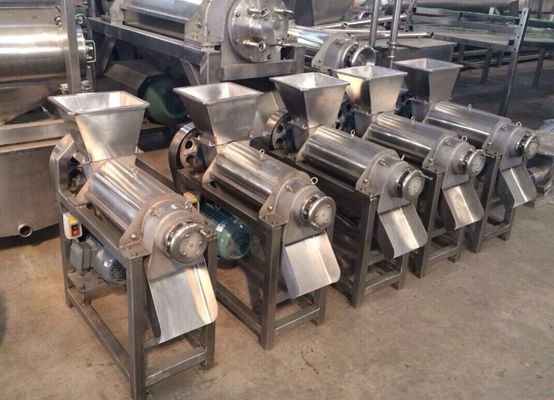

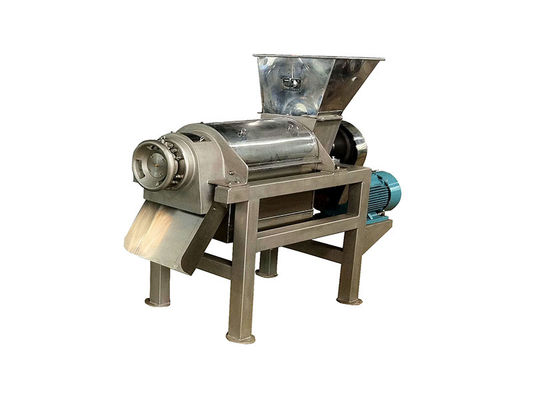

More pictures for Spiral Juice Extractor

Spiral Juicing Machine is mainly used for pressing and extracting of fruits and vegetables such as berries, nuts and rhizomes. Spiral Juicing Machine can also be used for pressing and extracting of fruits and vegetables after de nucleation and softening.

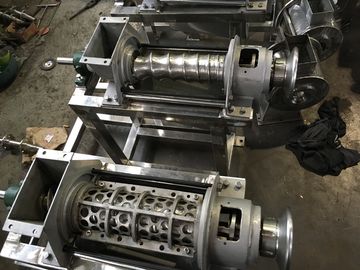

Spiral Juicing Machine is mainly composed of motor, frame, front support,pressing screw, combination device of filter screen,juicer, rear support, slag scraping and discharging components. The left end of the press screw spindle is supported in the rolling bearing, the right end is supported in the handwheel bearing seat, and the motor drives spiral juicing machine through a pair of V-belt pulley.

FAQ

Q: What’s your product name ?

A: 2T/H SUS304 Coconut Juicing Machine Easy To Clean For Philippine.

Q: Why should I choose your company?

A: (1)24hour/7day after sales service support ;

      (2)Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center;

      (3)Technical training for customers in our company factory or working site;

      (4)Every product will be tested before the delivery.

      (5)Delivery on time and excellent after-sales service.

Q: How to solve the service after sale ?

A: Solve any problem online . Supply you English manual book and technical support , maintain and install video to help you solve the problem.
