|1-3T/Hr SUS304 Industrial Juicer Machine For Pineapple Or Ginger
|Fruit And Vegetable Juice
|Wooden Packages/ Membrane Packages
Pineapple Industrial Juicer Machine,
3T/H Industrial Juicer Machine,
Ginger Industrial Juicer Machine
1-3T/Hr SUS304 Industrial Juicer Machine For Pineapple Or Ginger
This Crushing machine is used for juicing of all fruits and vegetables (stone fruits must be pitted), especially suitable for crushing and juicing of materials with high fiber content such as ginger and wheat seedlings.

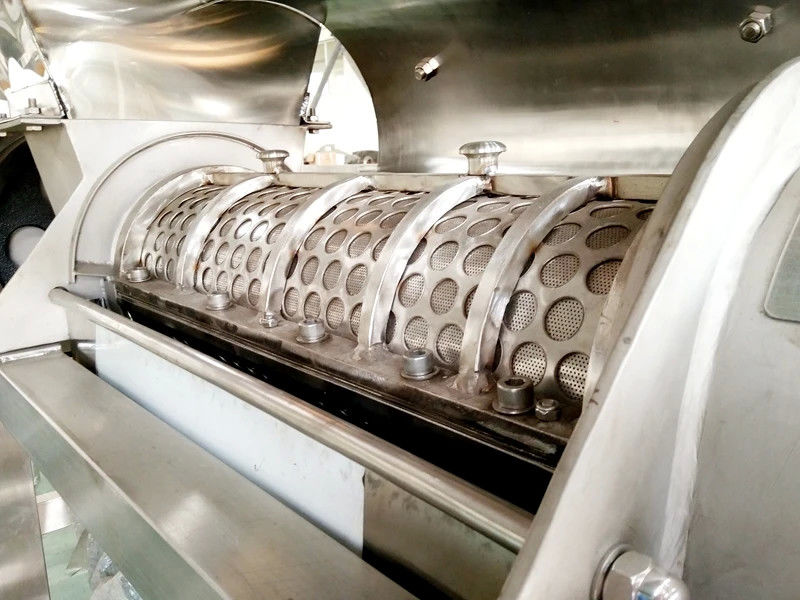

This equipment consists of two parts: a crusher and a juicer. The main component is the crushing device installed on the feeding hopper (consisting of feeding hopper, body, main shaft, flying knife, bottom knife, bearing seat, motor, etc.). When working, the motor drives the main shaft to rotate through a pair of pulleys, and the material is rotated at high speed. The flying knife is chopped, and due to the centrifugal force, it directly enters the screw juice extraction system. The main component of the screw juice extraction is the screw. The bottom diameter of the screw gradually increases along the direction of the outlet of the slag, and the pitch gradually decreases. When the material is pushed by the screw, the volume of the screw cavity is reduced, forming the pressing of the material. The material is pressurized under the propelling of the screw, and the squeezed juice flows into the juice container at the bottom through the filter screen, and the waste material is discharged through the annular gap formed between the screw and the conical part of the pressure regulating head, and the pressure regulating head is axially The movement of the can adjust the size of the gap and adjust the juice yield.
|Matched Power (kw)
3. Feature and Advantage
Crusher Juicing Machine can automatically complete the processes of crushing and has the advantages of energy saving, low juice content of the filtering residue.
Crusher Juicing Machine is suitable for processing all kinds of berries, pome fruits and various vegetables, and is widely used to extract juice from apples, pears, carrots, pineapples, coconuts, aloes, cacti, etc.
5. More pictures
All Kinds Of Fruits And Vegetable Juice Extractor Machine
The main Crusher Juicing Machine of crusher consists of hammer, screen, main shaft, body and other parts. The whole Crusher Pulping Juicing Machine is composed of feeding hopper, crushing device,front support, screw,filter screen, juicer, rear support, slag chute and other components. The left end of the screw spindle is supported in the rolling bearing seat, the right end is supported in the handwheel bearing seat, and the motor drives the screw through the V-belt pulley for work. Working principle: the main component of the equipment is to install a crushing device on the feed hopper, and there are four groups of flying knives and a group of bottom knives on the rotor. The flying knives rotate around their own axes in the fixed bottom knife gap,so that the fruits and vegetables can be crushed with a particle size of 2-5mm, and directly enter the spiral juice extraction system, so as to improve the juice extraction effect. The main component of spiral juicing is screw.The screw diameter gradually increases along the direction of slag outlet and the screw pitch gradually decreases. When the material is pushed by screw, the volume of screw cavity shrinks,forming the pressing of the material.
(1)Reply in 24 hours
(2)Providing professional solutions
(3)Every product will be tested before the delivery
(4)Delivery on time and excellent after-sale service
(5)High quality, reliable price
Q: What’s your product name ?
A: Apple 2t/H Crusher Juicing Machine
Q: Why should I choose your company?
A: (1) 24hour/7day after sales service support ;
(2)Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center;
(3)Technical training for customers in our company factory or working site;
(4)Every product will be tested before the delivery.
(5)Delivery on time and excellent after-sales service.
Q: How to solve the service after sale ?
A: Solve any problem online . Supply you English manual book and technical support , maintain and install video to help you solve the problem.
