Product Details:
|
| Name: | SUS304 5T/H Fruit Juice Belt Press With German GKD Belt For Vietnam | Usage: | Fruit And Vegetable Juice |
|---|---|---|---|
| Model: | DYJ | Material: | SUS304 |
| Motor Speed: | 8r/min | Linear Velocity Of Filter Belt: | 5m/min |
| Highlight: | Fruit Juice Belt Press,German GKD Juice Belt Press,SUS304 Juice Belt Press |
||
SUS304 5T/H Fruit Juice Belt Press With German GKD Belt For Vietnam
1. Descriptions for Belt press
fruit belt filter press is a key device that relates to the juicing rate in the production of fruit and vegetable juices. The equipment increases juicing rate of fruits by 20~35％, and the juicing rate is up to 75~80％ (according to materials), reduce the cost of production and enhance the economic benefit.
2 . Specifications for Belt Type Juicing Machine
| Model | DYJ-3 | DYJ-5 | DYJ-10 | DYJ-20 | |
| Production capacity(t/h) | 1~3 | 3~5 | 10~12 | 20~22 | |
| Total power | 20.38 | 21.18 | 22.25 | 41.37 | |
| Main drive moto speed(r/min) | 8 | 8 | 8 | 5 | |
| Linear velocity of filter belt (m/min) | 5 | 5 | 5 | 5 | |
| Feed feight(mm) | 1900 | 1900 | 2000 | 1920 | |
| Outline size(mm) | 3230×1600×2000 | 4000×2085×2505 | 5000×2880×2505 | 5420×3380×2050 | |
| Host power | 2.2 | 3 | 4 | 5.5 | |
| Power of distributing roller | 0.55 | 0.55 | 0.75 | 0.75 | |
| Compressed air | Pressur (Mpa) | 0.7 | 0.7 | 0.7 | 0.7 |
| oxygen consumption (m³/h) | 1 | 1 | 1 | 1 | |
| Wash water return pump | Power (kw) | 3 | 3 | 3 | 5.5 |
| Flow (m³/h) | 25 | 25 | 25 | 25 | |
| Lift (m) | 20 | 20 | 20 | 20 | |
| Spray high pressure pump | Power (kw) | 15 | 15 | 15 | 15*2 |
| Flow (m³/h) | 16 | 16 | 16 | 16*2 | |
| Lift (m) | 165 | 165 | 189 | 189 | |
3. Feature and Advantage for Belt press
• Main structure made of SUS 304 stainless steel.
• Using Mirror welding tech to ensure tidy and smooth welding line.
• Advantages of energy saving
4. Usages for Belt press
Belt type juicing machine is widely used in juice extraction and environmental protection process of fruits and vegetables and Belt type juicing machine can also be used for pressure filtration and dehydration of powdery materials in chemical industry, environmental protection, light industry and other industries.

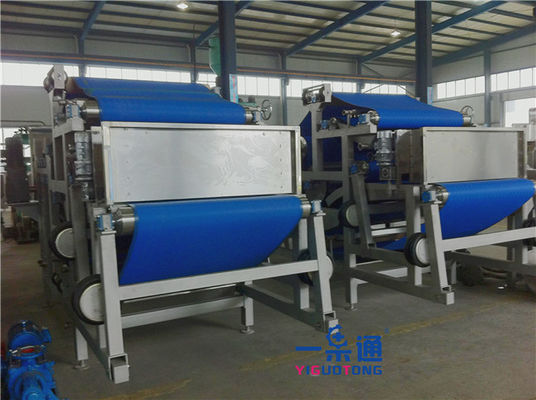

5. More Picture for Belt press
Production Process for Belt Type Juicing Machine
The refined raw materials (solid liquid mixture) are continuously pumped into the hopper by the progressing cavity pump (the bandwidth occupied by the material can be adjusted) and distributed evenly by the distributing roller. A large amount of water is slowly squeezed out of the lower wedge to form a squeezable filter cake, In the press area, a pressure roller with an "L" shaped strip presses out the water and ensures that the water flows out quickly on both sides. The diameter of the press roller at the back is decreasing, and the filter belt is in the shape of "S", which produces a shear force of decreasing surface pressure, which ensures the dehydration effect. To further increase the rate of dehydration, a pressure roller is added to generate linear pressure and peripheral pressure. After dehydration, the filter cake is scraped by wear-resistant scraper. The two filter belts are continuously washed by high-pressure nozzle, so that the filter belt can keep the effect of juice. Spray washing water through the reflux pump through the arc filter screen automatic filtration, slag discharge, recycling use, energy saving. The filter belt is made of nylon yarn warp and weft.
6. Service for Belt Type Juicing Machine
(1)Reply in 24 hours
(2)Providing professional solutions
(3)Every product will be tested before the delivery
(4)Delivery on time and excellent after-sale service
(5)High quality, reliable price
